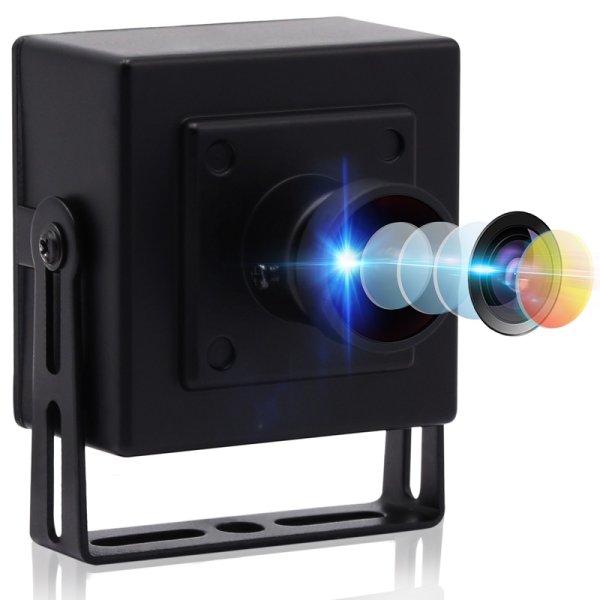

OEM ELP 16MP Free driver IMX298 Sensor Wide angle CMOS USB Camera 1080P with no distortion lens

Model: ELP-USB16MP01-BH110

Add you Tags

Product 13/20

Return to the Product List

Details

Download

Features:

* High resolution 16MP wide angle usb camera with IMX298 Sensor

* Super high resolution 4656* 3496 resolution

* UVC free driver, Plug and Play micro usb camera

* Standard with 3m cable (1m/2m/5m... cable optional)

* With diagonal 110 degree no distortion lens (FOV about 107degree ) , 2.8mm, 60-120 degree no distortion lens, Fisheye lens optional

* Support different operating systems, compatible with different software

Specifications:

Model	ELP-USB16MP01-BH110
Sensor	IMX298
Sensor Size	1/2.8inch
Pixel Size	1.12um
Image Area	6.4mm x 5.3mm
Max. Resolution	4656(H) X 3496(V) 16 Megapixel
Compression Format	MJPEG / YUY2 (YUYV)
Resolution & Frame Rate	4656 x 3496 MJPEG@10fps YUY2@1fps 4208 x 3120MJPEG@10fps YUY2@1fps 4160 x 3120 MJPEG@10fps YUY2@1fps 4000 x 3000MJPEG@10fps YUY2@1fps 3840 x 2160 MJPEG@10fps YUY2@1fps 3264 x 2448MJPEG@10fps YUY2@1fps 2592 x 1944 MJPEG@10fps YUY2@1fps 2320 x 1744MJPEG@30fps YUY2@1fps 2048 x 1536 MJPEG@30fps YUY2@1fps 1920 x 1080MJPEG@30fps YUY2@5fps 1600 x 1200 MJPEG@30fps YUY2@5fps 1280 x 960MJPEG@30fps YUY2@10fps 1280 x 720 MJPEG@30fps YUY2@10fps 1024 x 768MJPEG@30fps YUY2@10fps 800 x 600 MJPEG@30fps YUY2@15fps 640 x 480MJPEG@30fps YUY2@30fps
Min Illumination	0.5 Lux
Shutter Type	Electronic Rolling Shutter / Frame Exposure
Connecting Port Type	USB2.0 High Speed
Free Drive Protocol	USB Video Class (UVC)
AEC	Support
AWB	Support
AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure
Lens Parameter	No distortion lens, FOV about 107 degree (2.8mm/3.6mm, No Distortion Lens (FOV 60~120 degree optional), 140 degree /180 degree Fisheye Lens etc.)
Power Supply	USB BUS POWER 4P-2.0mm Socket
Operating Voltage	DC5V
Working Current	180mA~240mA
Working Temperature	-10~70℃
Storage Temperature	-20~85℃
Board Size /Weight	41x41mm
Cable	Standard 3m / Optional 1m,2m,5m...
Operating System Request	WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC (above Linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
