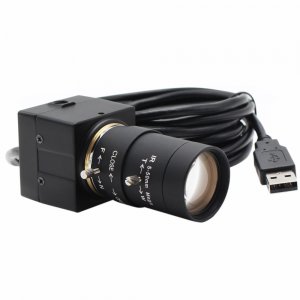

High speed 720p 60fps global shutter usb2 camera with 5-50mm varifocal zoom lens for Machine Vision

Model: ELP-USBGS720P02-SFV(5-50)

Add you Tags

Product 6/6

Return to the Product List

Details

Download

Features:

* High quality Aptina AR0144 Sensor for high quality image
* Shutter Type -Global shutter for fast computer vision
* High frame rate - deliver 1280X720MJPEG@ 60fps
* Black & white image
* 5-50mm varifocal CS lens
* With mini industrial metal box housing
* Improved image quality for fast moving objects
* Total Noise Floor Reduction, SNR Improvement
* High Dynamic Range
* Ideal for battery powered applications
* UVC compliance for use in OS Windows,Linux, Android

Specification:

Model	ELP-USBGS720P02-SFV(5-50)
Sensor	Aptina AR0144
Lens Size	1/4 inch
Pixel Size	3.0µm
image area	3888µm x 2430 µm
Effective Pixels	1280(H)X720(V) 1MP
Compression format	MJPEG / YUV2 (YUYV)
Resolution & frame	1280X720MJPEG@ 60fps YUY2@5fps 800X600MJPEG@ 60fps YUY2@20fps 640X480 MJPEG@ 60fps YUY2@ 30fps
S/N Ratio	38dB
Dynamic Range	63.9dB
Sensitivity	3.1V/lux-sec@550nm
Mini illumination	0.2 Lux
Shutter Type	Global Shutter
Connecting Port type	USB2.0 High Speed
OTG protocol	USB2.0 OTG
Free Drive Protocol	USB Video Class(UVC)
AEC	Support
AEB	Support
AGC	Support
Adjustable parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure
Lens Parameter	5-50mm Varifocal CS Lens (2.8-12mm CS Lens optional)
Power supply connector	USB BUS POWER 4P-2.0mm socket
Work Power Voltage	DC5V
Work Power Current	110mA~160mA
Working temperature	-10～70℃
Storage temperature	-20～75℃
Board size /Weight	3838/3232mm / About 30g
Cable	Standard 3m cables (2M,5M optional )
