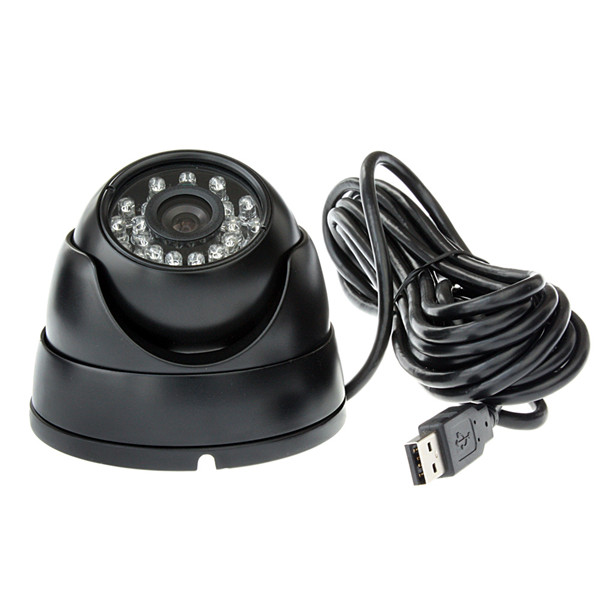

Model

ELP-USB100W05MT-DL36

Sensor

NT99141

Lens Size

1/4 inch

Pixel Size

3.0um X 3.0um

image area

3888 µm x 2430 µm

Max. Resolution

1280(H)X720(V)

Compression format

MJPEG  / YUV2（YUYV）

Resolution & frame

1280X720 MJPEG@ 30fps YUY2@10fps/ 960X720MJPEG@ 30fps YUY2@15fps

800X600 MJPEG@30fps YUY2@20fps/ 640X480 MJPEG@ 30fps YUY2@ 30fps

352X248 MJPEG@30fps YUY2@ 30fps/ 320X240 MJPEG@ 30fps YUY2@ 30fps

176X144 MJPEG@30fps YUY2@ 30fps/ 160X120 MJPEG@ 30fps YUY2@ 30fps

S/N Ratio

40dB

Dynamic Range

69dB

Sensitivity

3.7V/lux-sec@550nm

Mini illumination

0. 1lux

Shutter Type

Electronic rolling shutter / Frame exposure

Connecting Port type

USB2.0 High Speed（Support USB2.0 HS/FS, USB2.0 OTG）

Free Drive Protocol

USB Video Class（UVC）

AEC

Support

AEB

Support

AGC

Support

Adjustable parameters

Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
White balance, Backlight Contrast, Exposure

Lens Parameter

Standard 3.6mm, optional 6/8mm

LED

24PCS LEDs

Audio input

Support

IR CUT Connector

Support  2P-1.25mm socket

LED board test connector

Support  2P-1.25mm socket

LED board power connector

Support  2P-2.0mm socket

Power supply

USB BUS POWER  4P-2.0mm socket

Power supply

DC 5V

Operating Voltage

100mA~120mA

Working current

 -10～70℃

Working temperature

-20～85℃

size /Weight

Cable

Default with 5m cable / optional 1m,2m, 3m...

Operating system request

Win XP/Vista/Win7/Win8/Win9/Win10/Win11 etc.

Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later

Android 4.0 or above with UVC
