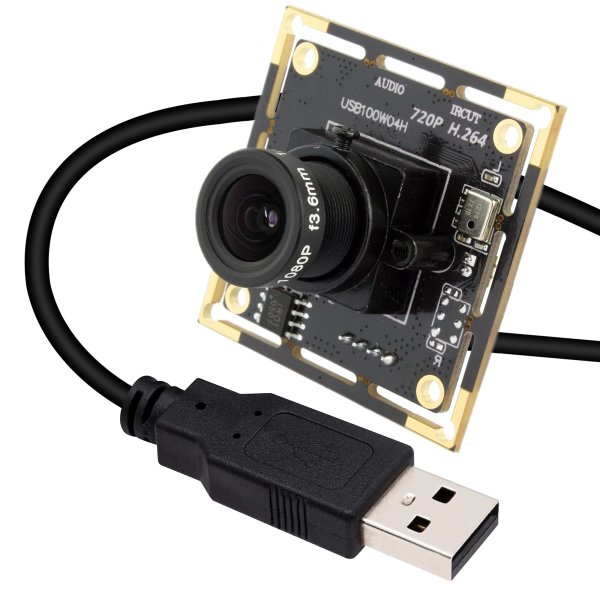

H264 HD 720P USB Camera Module USB2.0 OV9712 Color Sensor with Digital audio 3.6MM Lens

Model: ELP-USB100W04H-L36

Add you Tags

Product 7/13

Return to the Product List

Details

Download

H264 HD 720P USB Camera Module USB2.0 OV9712 Color Sensor with M12 3.6MM Lens

Feature:

*1megapixels HD USB Camera, max 1280x720

*Equiped with Standard M12 mount 3.6mm lens, 2.1mm/2.8mm/6mm/8mm/12mm for optional to change

*Support microphone, audio record function offered.

*H.264 ,MJPEG ,YUY2 compression format support, max 720P @30fps

*Support IR Cut, for for sharp image and accurate color reproduction.

*CMOS OV9712 sensor for high quality image and low power consumption.

*High speed USB 2.0 interface for high resolution PC camera interface.

*Super small outline and thin profile for embedded applications.(32*32/38*38mm)

*High quality lens, true and undistorted color image.

*UVC for use in Android, Linux, Windows XP, WIN CE, MAC, SP2 or above.

*Camera with UVC.

Main Specifications

Model	ELP-USB100W04H-L36 (3.6mm lens, HFOV 60 degree) optional for: ELP-USB100W04H-L21 (2.1mm lens, HFOV 72 degree) ELP-USB100W04H-L28 (2.8mm lens, HFOV 76 degree) ELP-USB100W04H-L60 (6mm lens, HFOV 35 degree) ELP-USB100W04H-L80 (8mm lens, HFOV 29 degree) ELP-USB100W04H-L12 (12mm lens, HFOV 16 degree)
Sensor	OV9712
Lens Size	1/4 inch
Pixel Size	3.0um X 3.0um
image area	3888 µm x 2430 µm
Max. Resolution	1280(H)X720(V)
Compression format	H264 /MJPEG / YUV2（YUYV）
Resolution & frame	H264：640X360@ 30fps /640X480@ 30fps /800X600@ 30fps /1280X720@ 30fps MJPEG：640X480@ 30fps /800X600@ 30fps /1280X720@ 30fps YUV：320X240@ 30fps /640X360@ 30fps /640X480@ 30fps /1280X720@ 10 fps
S/N Ratio	40dB
Dynamic Range	69dB
Sensitivity	3.7V/lux-sec@550nm
Mini illumination	0.1lux
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port type	USB2.0 High Speed
Free Drive Protocol	USB Video Class（UVC）
Support OTG Protocol	USB2.0 OTG
AEC	Support
AEB	Support
AGC	Support
Adjustable parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure
Lens Parameter	Standard M12 3.6mm, HFOV about 60 degree; optional 2.1/2.8/6/8/12mm lens, fisheye lens FOV(D)150 Degree
Digital audio	High quality digital MIC, support single, dual channel
IR CUT Connector	Support 2P-1.25mm socket
LED board power connector	Support 2P-2.0mm socket
Power supply	USB BUS POWER 4P-2.0mm socket
Power supply	DC5V
Operating Voltage	120mA~180mA
Working current	-10～70℃
Working temperature	-20～85℃
Board size /Weight	38X38mm（Compatible 32X32mm）/ about 30g
Cable	Standard 1M / optional 2M,3M,5M
Operating system request	Win7 Win8 Win9 Win10 Win11 etc. Linux 2.6 or above MAC- OS X 10.4.8 or later Android 4.0 or above
