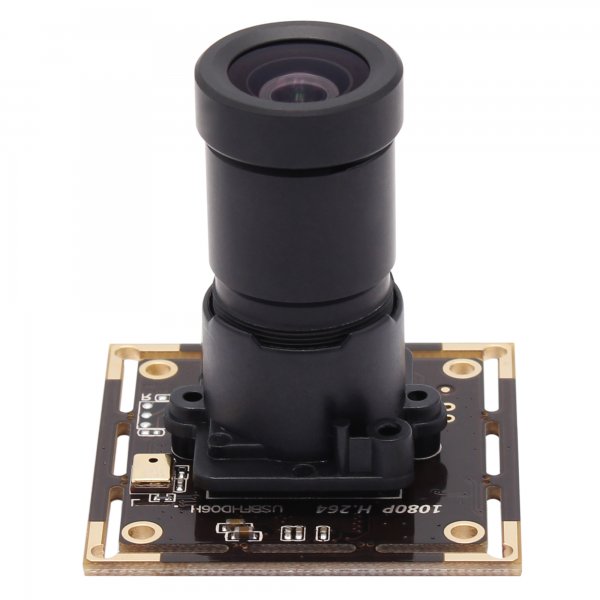

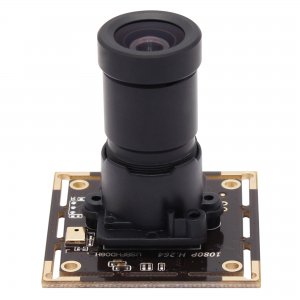

H.264 1080p Ultra low illumination Sony IMX 323 usb camera module with 4mm M16 start light lens

Model: ELP-USBFHD06H-LH4

Add you Tags

Product 19/20

Details

Download

Features:
* 2MP 1080P H.264 USB Camera module with 4mm dark light M16 lens
* 1/2.9” Sony IMX323 sensor for high quality image
* 0.01 Lux Low illumination - ideal for any lighting condition
* With HD 4MM dar light M16 lens
* With microphone for audio recording
* H.264/MJPEG/YUY2 dual video format optional
* Mini size 38x38/32x32mm for embedded application
* High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface
* Low power consumption - ideal for portable equipment.
* UVC compliant - support Windows, Linux, Android system with UVC
* Support USB2.0 OTG Protocol - Can be external camera for mobile phone, Tablet and other device which support OTG
* Application: Scanner, 3D printer, Simple surveillance, Robot, ATM, Kiosk etc.

Specification:

Model	ELP-USBFHD06H-LH4(4mm M16 lens) ELP-USBFHD06H-LH6(6mm M16 lens) ELP-USBFHD06H-LH8(8mm M16 lens)
Sensor	Sony IMX323
Lens Size	1/2.9 inches
Pixel Size	12.8X11.6 mm
image area	2000(H)X1121(V) approx. 2.24 M pixels
Max. Resolution	1080P
Compression format	H.264 /MJPEG / YUV2（YUYV）
Resolution & frame	H264： 320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps/ 800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps MJPEG： 320X240@ 30fps /352X288@ 30fps /640X360@ 30fps/ 640X480@30fps/800X600@ 30fps/ 1280X720@ 30fps/1920X1080@30fps YUV： 320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps/ 800X600@ 15 fps
S/N Ratio	42dB
Dynamic Range	86dB
Sensitivity	5.0V/lux-sec@550nm
Mini illumination	0. 01lux
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port type	USB2.0 High Speed
Free Drive Protocol	USB Video Class（UVC）
Support OTG Protocol	USB2.0 OTG
AEC	Support
AEB	Support
AGC	Support
Adjustable parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure
Lens Parameter	4mm dark light M16 lens (6/8mm M16 lens optional)
Digital audio	High quality digital MIC, support single, dual channel
LED board power connector	Support 2P-2.0mm socket
Power supply	USB BUS POWER 4P-2.0mm socket
Operating Voltage	DC5V
Working current	140mA~190mA
Working temperature	-10～70℃
Storage temperature	-20～85℃
Board size /Weight	38X38mm（Compatible 32X32mm）/ about 30g
Cable	Standard 1M / 2M,3M,5M optional
Operating system request	Win7 Win8 Win10 Win11 Linux 2.6 or above Android 4.0 or above
