Model

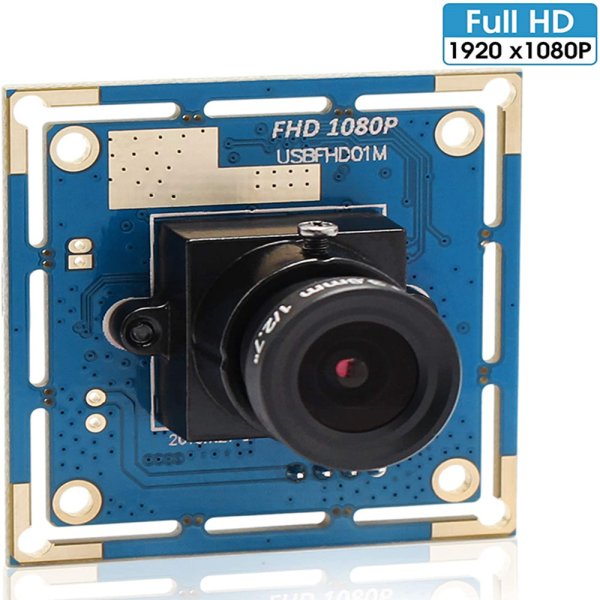

ELP-USBFHD01M-L36

Sensor

OV2710

Sensor Size

1/2.7 inch

Pixel Size

3μm x 3μm

image area

5856 μm x 3276 μm

Max. Resolution

FULL HD 1920(H)X1080(V)

Compression format

MJPEG  / YUV2（YUYV）

Resolution & frame

320X240  QVGA  MJPEG @120fps/  352X288 CIF  MJPEG @120fps

640X480  VGA  MJPEG@120fps/   800X600 SVGA  MJPEG@60fps

1024X768  XGA  MJPEG@30fps/  1280X720  HD   MJPEG@60fps

1280X1024  SXGA MJPEG@30fps/  1920X1080 FHD  MJPEG@30fps

Special function

Lens correction/ Defective pixel correction/ Black sun cancellation

Mini illumination

0. 05lux

Shutter Type

Electronic rolling shutter / Frame exposure

USB protocol

USB2.0 HS/FS

Connecting Port type

USB2.0 High Speed

OTG protocol

USB2.0 OTG

Free Drive Protocol

USB Video Class（UVC）

AEC

Support

AEB

Support

AGC

Support

Adjustable parameters

Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
White balance, Backlight Contrast, Exposure

Lens Parameter

Standard 3.6 mm, optional/2.5/2.8/3.6/6mm/FOV(D)187 Degree/170 Degree

Night vision

Support, need to equipped IR sensor 850nm or 940nm lens and IR LED Board

LED board power connector

Support  2P-2.0mm socket

Power supply

USB BUS POWER  4P-2.0mm socket

Power supply

DC5V

Operating Voltage

120mA~220mA

Working current

 0～60℃

Working temperature

-20～75℃

Board size /Weight

38X38mm（Compatible 32X32mm）/ about 30g

Cable

Standard  1M / optional 2M,3M,5M

Operating system request

WinXP/Vista/Win7/Win8

Linux with UVC（above linux-2.6.26）

MAC-OS X 10.4.8 or later

Wince with UVC

Android 4.0 or above with UVC
