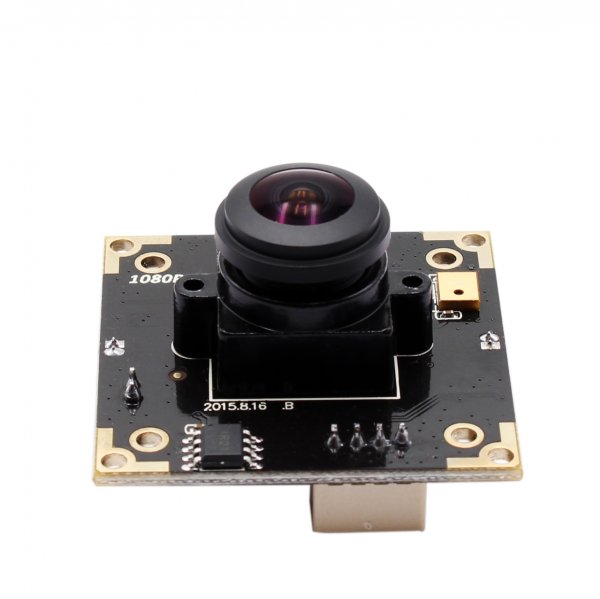

Free driver 3MP H.264 AR0331 CMOS WDR camera USB 2.0 with 180 degree lens for bus monitoring system

Model: ELP-USB3MP01H-L180

Add you Tags

Product 17/17

Return to the Product List

Details

Download

Feature:

* 3MP WDR USB Camera module with 180 degree fisheye lens
* 1/3” Aptina AR0331 sensor for high quality image
* Dynamic Range up to 100 dB
* With HD 180 degree fisheye M12 lens
* With microphone for audio recording
* Support IR CUT & IR LED for no color distortion image day & night
* H.264/MJPEG/YUY2 dual video format optional
* Mini size 38x38mm for embedded application
* High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface
* Low power consumption - ideal for portable equipment.
* UVC compliant - support Windows, Linux, Android system with UVC
* Support USB2.0 OTG Protocol - Can be external camera for mobile phone, Tablet and other device which support OTG

Specification:

Model	ELP-USB3MP01H-L180
Sensor	AR0331
Lens Size	1/3 inches
Pixel Size	2.2um X2.2um
Max. Resolution	2048X1536
Compression format	H.264 /MJPEG / YUV2（YUYV）
Resolution & frame	H264: 640X360@ 30fps /1280X720@ 30fps /1920X1080@ 30fps MJPEG:640X480@ 30fps /800X600@ 30fps /1280X720@ 30fps/1280X1024@ 30fps/1920X1080@ 30fps /1600X1200@ 15fps /2048X1536@ 15fps YUV:640X480@ 30fps /800X600@ 20fps /1280X720@ 5fps/1280X1024@ 5fps/1920X1080@5fps /1600X1200@ 5fps /2048X1536@ 3fps
S/N Ratio	39dB
Dynamic Range	Up to 100 dB
Sensitivity	2.0V/lux-sec@550nm
Mini illumination	0. 05lux
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port type	USB2.0 High Speed
Free Drive Protocol	USB Video Class（UVC）
Support OTG Protocol	USB2.0 OTG
AEC	Support
AEB	Support
AGC	Support
Adjustable parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure
Lens Parameter	Standard 180 degree fisheye M12 lens (2.1/2.8/3.6/6/8/12mm or fisheye lens or no distortion lens Optional)
Digital audio	High quality digital MIC, support single, dual channel
IR CUT Connector	Support 2P-1.25mm socket
LED board power connector	Support 2P-2.0mm socket
Power supply	USB BUS POWER 4P-2.0mm socket
Operating Voltage	DC5V
Working current	140mA~200mA
Working temperature	-10～70℃
Storage temperature	-20～85℃
Board size /Weight	38X38mm / about 30g
Cable	Standard 1M / 2M,3M,5M optional
Operating system request	Win7 Win8 Win10 Win11 Linux 2.6 or above Android 4.0 or above
