Item

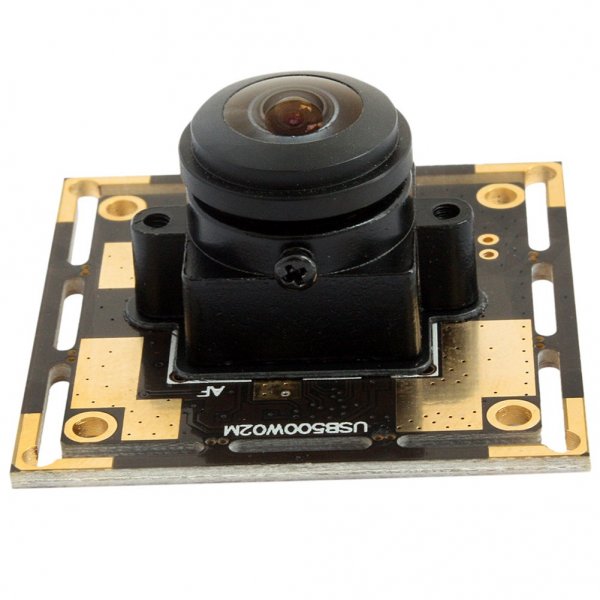

5 Megapixel OV5640 wide angle USB Camera

Model

ELP-USB500W02M-L170

Optional Models

ELP-USB500W02M-L28 (2.8mm)                   ELP-USB500W02M-L36 (3.6mm)
ELP-USB500W02M-L60 (6mm)                      ELP-USB500W02M-L80 (8mm)
ELP-USB500W02M-L12 (12mm)                    ELP-USB500W02M-L100 (No distortion lens)
ELP-USB500W02M-L21 (2.1mm)

All above models, specifications are same, just lens different

Resolution & FPS

2592x1944@ 15fps MJPEG                             2048x1536@ 15fps MJPEG
1600x1200@ 15fps MJPEG                             1920x1080@ 15fps MJPEG
1280x1024@15fps MJPEG                              1280x720@ 30fps MJPEG
1024 x 768@ 30fps MJPEG                              800 x 600@ 30fps MJPEG
640x480@ 30fps MJPEG                                  320x240@ 30fps MJPEG

Sensor

Omnivision OV5640

Connecting Port Type

USB2.0 High speed

Sensor Size

1/4 inch

Support free driver

 USB Video Class(UVC)

Pixel Size

1.4µm x1.4µm

Shutter Type

Electronic rolling shutter/ Frame exposure

Max. Resolution

2592 (H) *1944 (V)

AEB  AEC

 Support

Picture format

MJPEG or YUY2(YUYV)

AGC

Support

Lens Parameter

HD L170 fisheye lens , HFOV about 140
optional2.1/2.8/3.6/6/8/12mm

Adjustable parameters

 Brightness/Contrast/Saturation,
Hue, Sharpness,Gamma, Exposure
White balance,Backlight Contrast

Cable

Standard 1m / Optional 2m,3m,5m

work temperature

 DEGREES(-20~70)

Board Size

38x38mm/32x32mm

Certifications

FCC and CE

Mini illumination

0.1lux

Power Supply

 DC 5V

USB Protocol

 USB2.0 HS/FS

Operating Voltage

150mW- 200mW

OTG protocol

USB2.0 OTG

Key Features

High Resolution

Night vision

 without night vision
(Can connect IR LED board to get night vision function)

LED board power connector

Support, 2P-2.0mm socket

Support OS

WinXP/Vista/WIN7/WIN8 /WIN9/WIN10
Linux with UVC
 Mac-OS X 10.4.8 or later
Wince with UVC,
Android 4.0 or above
