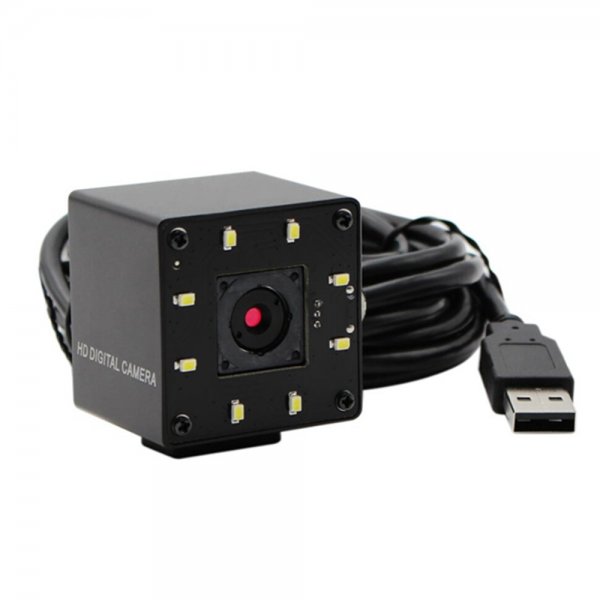

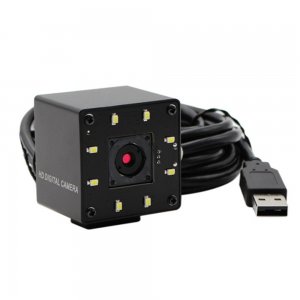

ELP Ultra HD 13MP Auto Focus Camera Module with SONY IMX214 CMOS sensor for document scanner machine

Product 24/28

Details

Download

Features:

*Super high resolution 13mp 3840x2880 USB autofocus camera with white led

*1/3 Sony IMX214 sensor for high quality image.

* High quality no distortion 75 degree lens .
* With Industrial mini black box metal housing

*High speed USB 2.0 interface for high resolution PC camera interface.

*high pixel technology for sharp image and accurate color reproduction.

*low light performance – ideal for any lighting condition.

*Super small outline 38*38mm and thin profile for embedded applications.

*High quality lens, true and undistorted color image.

*Low power consumption – ideal for portable equipment.

*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or Android4.0 above.

Specification:

Module No.	ELP-USB13MAF-KV75KR
Sensor	IMX214 (1/3" ) AF
Max. Resolution	3840(H) *2880 (V)
Sensitivity	1000mV/Lux-sec
Image area	6100µmx4524µm
Maximum Image Transfer Rate	3840x2880@10fps MJPEG/ 3264x2448@ 15fps MJPEG 3840x2160@ 15fps MJPEG / 2592x1944@ 20fps MJPEG 2048x1536@ 30fps MJPEG /1600x1200@ 30fps MJPEG 1920x1080@ 30fps MJPEG/ 1280x1024@30fps MJPEG 1280x960@30fps MJPEG/1280x720@ 30fps MJPEG 1024 x 768@ 30fps MJPEG/ 800 x 600@ 30fps MJPEG 640x480@ 30fps MJPEG / 320x240@ 30fps MJPEG
Focus	Auto
Object distance	8CM-100M
Resolution	1000LW/PH (Center)
interface	USB 2.0 High Speed
protocol	USB Video Class(UVC)
S/N Ratio	33dB
Shutter	Rolling shutter/ frame exposure
AGC/AEC/AWB/ABF	Auto
Output Formats	YUYV/MJPEG
Adjustable parameter	Brightness Contrast Hue Saturation Sharpness Gamma White Balance Exposure Focus
Lens Parameter	Size: 1/3, FOV: 75Degree Relative Illumination (Sensor): 70% IR Filter: 650±10nm
LED board power connector	Support 2P-2.0mm socket
Power supply	USB BUS POWER 4P-2.0mm socket
Operating Voltage	DC5V
Power consumption	220mW
Module Size	38mm × 38mm
Temperature (Operation)	-20°C to 70°C
Temperature (Stable Image)	0°C to 60°C
USB Cable	1M
Operating system request	Win XP/Vista/Win7/Win8 / Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC
