Model

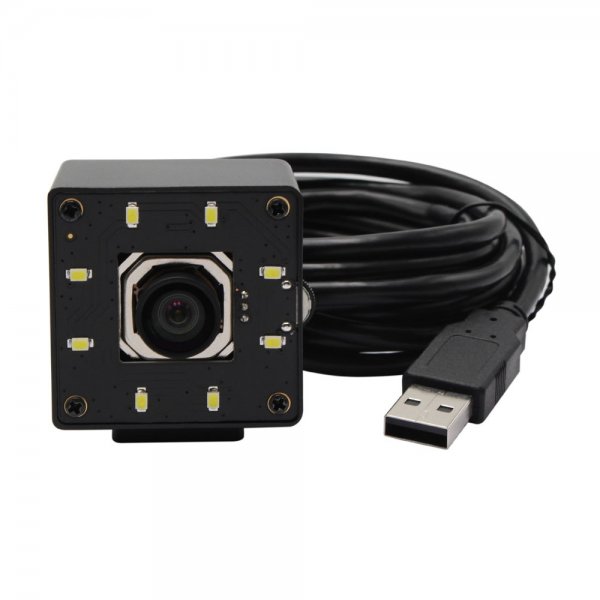

ELP-USB4K02AF-KL100W
(With White LED board, with button to adjust lighting strength)

Optional Models

ELP-USB4K02AF-KL28W (2.8mm)
ELP-USB4K02AF-KL21W (2.1mm)
ELP-USB4K02AF-KL36W (3.6mm)
ELP-USB4K02AF-KL60W (6mm)
ELP-USB4K02AF-KL80W (8mm)
ELP-USB4K02AF-KL12W (12mm)
ELP-USB4K02AF-KL16W (16mm)
ELP-USB4K02AF-KL25W (25mm)....

Sensor

SONY IMX415 (1/2.8” )

Max Resolution

3840(H) *2160 (V)

Sensitivity

1000mV/Lux-sec

Picture Size

1.45µmx1.45µm

Picture format

MJPEG  / YUY2(YUYV)

Resolution & FPS

3840x2160@ 30fps MJPEG / 2592x1944@ 30fps MJPEG
2048x1536@ 30fps MJPEG /1600x1200@ 30fps MJPEG
1920x1080@ 30fps MJPEG/ 1280x960@30fps MJPE
1280x720@ 30fps MJPEG / 800 x 600@ 30fps MJPEG
640x480@ 30fps MJPEG /  320x240@ 30fps MJPEG
3840x2160@ 1fps YUY2 / 2592x1944@ 1fps YUY2
2048x1536@ 3fps YUY2 /1600x1200@ 5fps YUY2
1920x1080@ 5fps YUY2/1280x960@5fps YUY2
1280x720@ 5fps YUY2 / 800 x 600@ 20fps YUY2
640x480@ 30fps YUY2 /  320x240@ 30fps YUY2

Center Definition

1000LW/PH (Center)

S/N (Signal Noise Ratio)

30dB

Sensitivity

0.65V/lux-sec@550nm

Low illumination

0.2lux

Shutter

Electronic rolling shutter / Frame exposure

Interface

USB2.0 High Speed

AEC

Support

AEB

Support

AGC

Support

Adjustable Parameters

Brightness, Contrast, Saturation, Hue, Sharpness, Gama, White Balance, Backlight Contrast, Exposure

Lens

 Size:  1/2.5, FOV: 94.5Degree
IR filter: 650±10nm

Power Supply & Connector

USB BUS POWER  4P-2.0mm socket

Power

DC5V

Current

200mA

Mini Casing Size

42mm × 42mm

Storage Temperature

-20°C to 70°C

Working Temperature

0°C to 60°C

USB Cable

3M(2M/1MOptional)

Operating System

Win XP/Vista/Win7/Win8 / Win9/Win10/Win11 etc.
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC
