Item

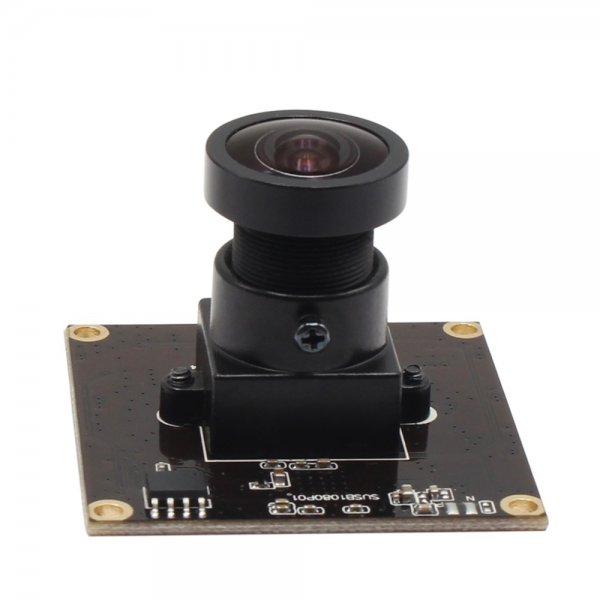

USB3.0 Camera Module

Model

ELP-SUSB1080P01-L29 （2.9mm）

Optional Model

ELP-SUSB1080P01-L21 (2.1mm)                       ELP-SUSB1080P01-L28 (2.8mm)
ELP-SUSB1080P01-L36 (3.6mm)                       ELP-SUSB1080P01-L60 (6mm)
ELP-SUSB1080P01-L80 (8mm)                          ELP-SUSB1080P01-L12 (12mm)
ELP-SUSB1080P01-L170 (fisheye lens, HFOV 140-150 degree)
ELP-SUSB1080P01-L180 (fisheye lens, HFOV >180 degree)
ELP-SUSB1080P01-LC1100 (No distortion lens, HFOV: 80-85 degree )

All above models, specifications are same, just lens different

Resolution & FPS

1920X1080 MJPEG@ 50fps/ USB3.0 1920X1080 YUY2@ 50fps
1280X720 MJPEG@ 50fps / USB3.0 1280X720 YUY2@ 50fps
640X480MJPEG@ 50fps / USB3.0 640X480 YUY2@ 50fps

Sensor

IMX291 Sensor

Connecting Port Type

USB3.0/USB2.0  High speed

Sensor Size

1/2.8 inch

Support free driver

 USB Video Class(UVC)

Pixel Size

2.9μm x 2.9μm

Shutter Type

Electronic rolling shutter/ Frame exposure

Mini illumination

0.01Lux

AEC

 Support

Max. Resolution

FULL HD 1920(H)x1080(V)pixels

AEB

 Support

Picture format

MJPEG or YUY2(YUYV)

AGC

Support

Lens Parameter

2.9mm lens (2.1mm/ 2.8mm/2.9mm, 3.6mm, 6mm/ 8mm/ 12mm/ No distortion /Fisheye 170 Degree,180Degree optional)

Adjustable parameters

 Brightness/Contrast/Saturation,
Hue, Sharpness,Gamma, Exposure
White balance,Backlight Contrast

Cable

Standard 1M/ Optional 2m,3m

work temperature

 DEGREES(-20~70)

Board Size/
Weight

38*38mm

Certifications

FCC and CE

Power supply

USB BUS POWER

Power Supply

 DC 5V

USB Protocol

 USB2.0 HS/FS

Operating Voltage

170mA~220mA

OTG protocol

USB2.0 OTG

Special function

USB 3.0 and low illumination

Night vision

Without (Do not advice Connect IR LED Board)

LED board power connector

Support, 2P-2.0mm socket

Support OS

WinXP/Vista/WIN7/WIN8 /Win9/ Win10
Linux with UVC
Mac-OS X 10.4.8 or later
Wince with UVC,
Android 4.0 or above
