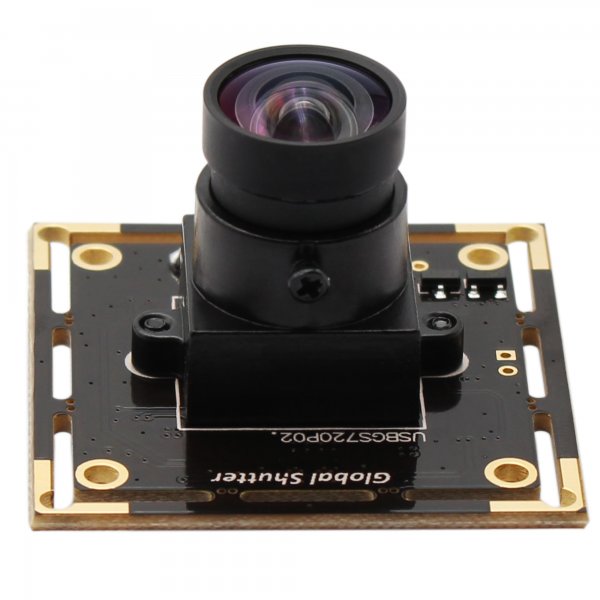

ELP New black and white AR0144 senor global shutter raspberry pi USB camera module for fast computer

Model: ELP-USBGS720P02-L100

Add you Tags

Product 4/6

Details

Download

Features:
* High quality Aptina AR0144 Sensor for high quality image
* Shutter Type -Global shutter for fast computer vision
* High frame rate - deliver 1280X720MJPEG@ 60fps
* Black & white image
* M12 no distortion lens
* UVC compliance for use in OS Windows,Linux, Android

Global shutter camera advantages:
Improved image quality for fast moving objects
Total Noise Floor Reduction, SNR Improvement
High Dynamic Range
Ideal for battery powered applications

Specification:

Model	ELP-USBGS720P02-L100
Sensor	Aptina AR0144
Lens Size	1/4 inch
Pixel Size	3.0µm
image area	3888µm x 2430 µm
Effective Pixels	1280(H)X720(V) 1MP
Compression format	MJPEG / YUV2 (YUYV)
Resolution & frame	1280X720MJPEG@ 60fps YUY2@5fps 800X600MJPEG@ 60fps YUY2@20fps 640X480 MJPEG@ 60fps YUY2@ 30fps
S/N Ratio	38dB
Dynamic Range	63.9dB
Sensitivity	3.1V/lux-sec@550nm
Mini illumination	0.2 Lux
Shutter Type	Global Shutter
Connecting Port type	USB2.0 High Speed
OTG protocol	USB2.0 OTG
Free Drive Protocol	USB Video Class(UVC)
AEC	Support
AEB	Support
AGC	Support
Adjustable parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure
Lens Parameter	Standard no distortion lens (2.1//2.8/ 3.6/6/8/12mm/ fisheye lens optional)
Power supply connector	USB BUS POWER 4P-2.0mm socket
Work Power Voltage	DC5V
Work Power Current	110mA~160mA
Working temperature	-10～70℃
Storage temperature	-20～75℃
Board size /Weight	3838/3232mm / About 30g
Cable	Standard 1m cables (2M,3M,5M optional )
