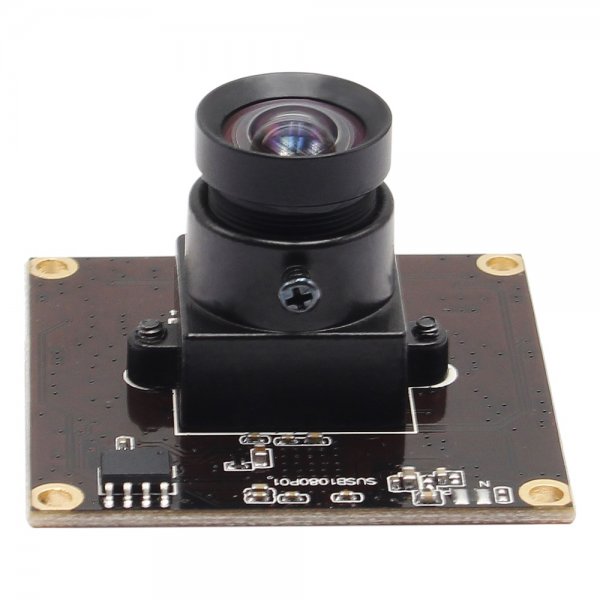

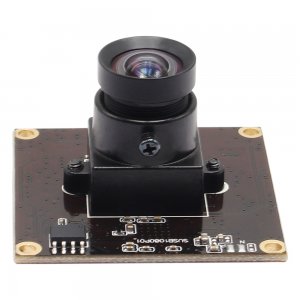

ELP low illumination camera module USB3.0 Camera with CMOS IMX291 sensor ELP-SUSB1080P01-LC1100

Model: ELP-SUSB1080P01-LC1100

Add you Tags

Product 2/7

Return to the Product List

Details

Download

Features:

* Full HD 1080P Low illmination 0.01Lux USB board Camera

* Sony IMX322 Sensor 0.01Lux low illumination USB Camera

* Mini micro USB webcam module, with standard 1m cable (2m, 3moptional).

* UVC Camera with UVC for use in WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above

* Compatible with raspberry pi, Opencv, Amcap and many other camera software and hardware.

Specification:

Item	USB3.0 Camera Module
Model	ELP-SUSB1080P01-LC1100 (No distortion lens, HFOV: 80-85 degree )
Optional Model	ELP-SUSB1080P01-L21 (2.1mm) ELP-SUSB1080P01-L28 (2.8mm) ELP-SUSB1080P01-L36 (3.6mm) ELP-SUSB1080P01-L60 (6mm) ELP-SUSB1080P01-L80 (8mm) ELP-SUSB1080P01-L12 (12mm) ELP-SUSB1080P01-L29 (2.9mm) ELP-SUSB1080P01-L170 (fisheye lens, HFOV 140-150 degree) ELP-SUSB1080P01-L180 (fisheye lens, HFOV >180 degree) All above models, specifications are same, just lens different
Resolution & FPS	1920X1080 MJPEG@ 50fps/ USB3.0 1920X1080 YUY2@ 50fps 1280X720 MJPEG@ 50fps / USB3.0 1280X720 YUY2@ 50fps 640X480MJPEG@ 50fps / USB3.0 640X480 YUY2@ 50fps
Sensor	IMX291 Sensor	Connecting Port Type	USB3.0/USB2.0 High speed
Sensor Size	1/2.8 inch	Support free driver	USB Video Class(UVC)
Pixel Size	2.9μm x 2.9μm	Shutter Type	Electronic rolling shutter/ Frame exposure
Mini illumination	0.01Lux	AEC	Support
Max. Resolution	FULL HD 1920(H)x1080(V)pixels	AEB	Support
Picture format	MJPEG or YUY2(YUYV)	AGC	Support
Lens Parameter	2.1mm/ 2.8mm/2.9mm, 3.6mm, 6mm/ 8mm/ 12mm/ No distortion /Fisheye 170 Degree,180Degree	Adjustable parameters	Brightness/Contrast/Saturation, Hue, Sharpness,Gamma, Exposure White balance,Backlight Contrast
Cable	Standard 1M/ Optional 2m,3m	work temperature	DEGREES(-20~70)
Board Size/ Weight	38*38mm	Certifications	FCC and CE
Power supply	USB BUS POWER	Power Supply	DC 5V
USB Protocol	USB2.0 HS/FS	Operating Voltage	170mA~220mA
OTG protocol	USB2.0 OTG	Special function	USB 3.0 and low illumination
Night vision	Without (Do not advice Connect IR LED Board)	LED board power connector	Support, 2P-2.0mm socket
Support OS	WinXP/Vista/WIN7/WIN8 /Win9/ Win10 Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC, Android 4.0 or above
