Model

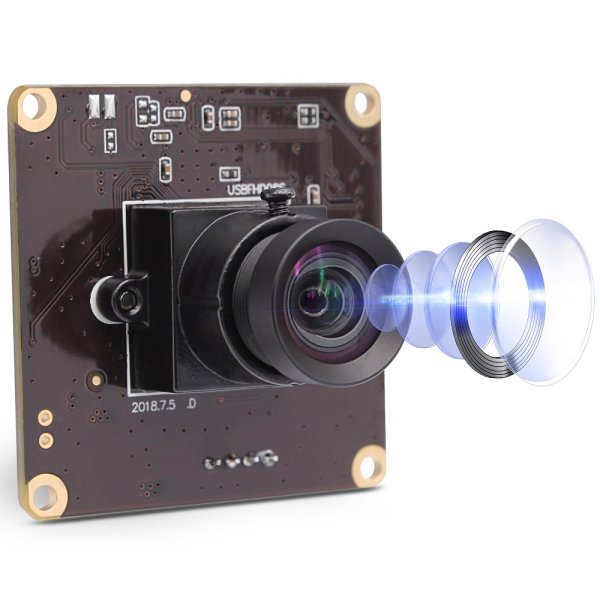

ELP-USBFHD08S-LC1100 (No distortion Lens)

Optional Model

ELP-USBFHD08S-L21 (2.1mm)                       ELP-USBFHD08S-L28 (2.8mm)
ELP-USBFHD08S-L36 (3.6mm)                       ELP-USBFHD08S-L60 (6mm)
ELP-USBFHD08S-L80 (8mm)                          ELP-USBFHD08S-L12 (12mm)
ELP-USBFHD08S-L170 (fisheye lens, HFOV about 120 degree)
ELP-USBFHD08S-L180 (fisheye lens, HFOV >180 degree)
ELP-USBFHD08S-L29  (2.9mm)
All above models, specifications are same, just lens different

Resolution & FPS

1920X1080 MJPEG@ 60fps
1280X720 MJPEG@ 120fps
640X360 MJPEG@ 260fps

Sensor

OV4689 Sensor

Connecting Port Type

USB2.0  High speed

Sensor Size

1/3 inch

Support free driver

 USB Video Class(UVC)

Pixel Size

2.0μm x 2.0μm

Shutter Type

Electronic rolling shutter/ Frame exposure

Mini illumination

0.1Lux

AEC

 Support

Max. Resolution

FULL HD 1920(H)x1080(V)pixels

AEB

 Support

Picture format

MJPEG or YUY2(YUYV)

AGC

Support

Lens Parameter

2.1mm/ 2.8mm/2.9mm, 3.6mm, 6mm/ 8mm/ 12mm/ No distortion /Fisheye 170 Degree,180Degree

Adjustable parameters

 Brightness/Contrast/Saturation,
Hue, Sharpness,Gamma, Exposure
White balance,Backlight Contrast

Cable

Standard 1M/ Optional 2m,3m,5m

work temperature

 DEGREES(-20~70)

Board Size/
Weight

38*38mm

Certifications

FCC and CE

Power supply

USB BUS POWER

Power Supply

 DC 5V

USB Protocol

 USB2.0 HS/FS

Operating Voltage

150mA~185mA

OTG protocol

USB2.0 OTG

Special function

High FPS

Night vision

Without (Do not advice Connect IR LED Board)

LED board power connector

Support, 2P-2.0mm socket

Support OS

WinXP/Vista/WIN7/WIN8 / WIN9/WIN10/WIN11 etc.
Linux with UVC
Mac-OS X 10.4.8 or later
Wince with UVC,
Android 4.0 or above
