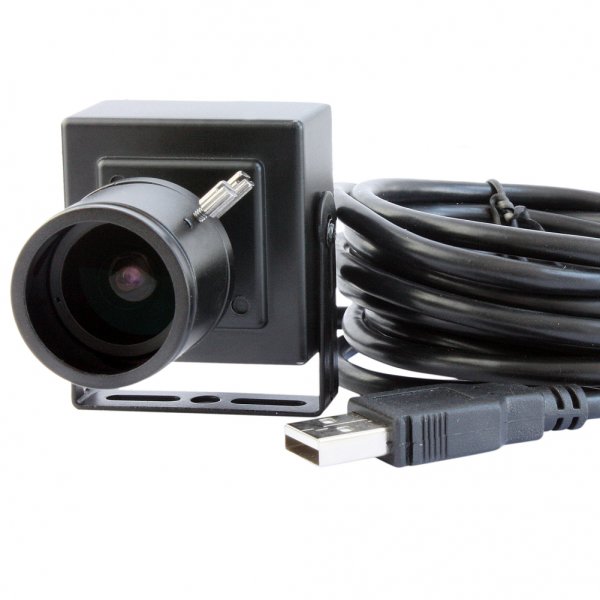

ELP High resolution 8 megapixel IMX179 CMOS Sensor 2.8-12mm varifocal lens USB Camera

Product 11/19

Details

Download

Features:

* high resolution USB Camera with 1/3.2” IMX179 sensor

* UVC camera for use in Win XPWin7Win8AndroidLinuxMac OS, Support Windows Amcap, Linux Raspberry PI, Unbuntu, Opencv...kinds of hardware

* MJPEG and YUY video compression format.

*High speed USB 2.0 interface for high resolution PC camera interface

*Super small case, with 41x41mm mini micro box case

*Varifocal 2.8-12mm lens

*With standard 3m usb cable (2m, 1m, 5m cable optional, also can customize the cable as requested)

Specifications:

Item	High Resolution 8MP HD USB Webcam
Model	ELP-USB8MP02G-BFV (2.8-12mm)
Resolution & FPS	3264X2448 Mjpeg @ 15fps 2592X1944Mjpeg@ 20fps 2048X1536 mjpeg@ 20fps 1600X1200 Mjpeg@ 20fps 1280X960 Mjpeg@ 20fps 1024X768 Mjpeg@ 30fps 800X600 Mjpeg@ 30fps 640X480 Mjpeg@ 30fps
Sensor	IMX179	Connecting Port Type	USB2.0 High speed
Sensor Size	1/3.2inch	Support free driver	USB Video Class(UVC)
Pixel Size	1.4um	Shutter Type	Electronic rolling shutter/ Frame exposure
Max. Resolution	3264 (H) *2448 (V)	AEB AEC	Support
Picture format	MJPEG or YUY2(YUYV)	AGC	Support
Lens Parameter	Varifocal 2.8-12mm M12 lens	Adjustable parameters	Brightness/Contrast/Saturation, Hue, Sharpness,Gamma, Exposure White balance,Backlight Contrast
Cable	Standard 3m / Optional 1m,2m,5m	work temperature	DEGREES(-20~70)
Case	With mini 41x41mm box case	Certifications	FCC and CE
Mini illumination	0.5lux	Power Supply	DC 5V
USB Protocol	USB2.0 HS/FS	Operating Voltage	180mA~240mA
OTG protocol	USB2.0 OTG	Special function	High Resolution
Night vision	without night vision	LED board power connector	Support, 2P-2.0mm socket
Support OS	WinXP/Vista/WIN7/WIN8 /WIN9/WIN10/WIN11 Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC, Android 4.0 or above
