Module No.

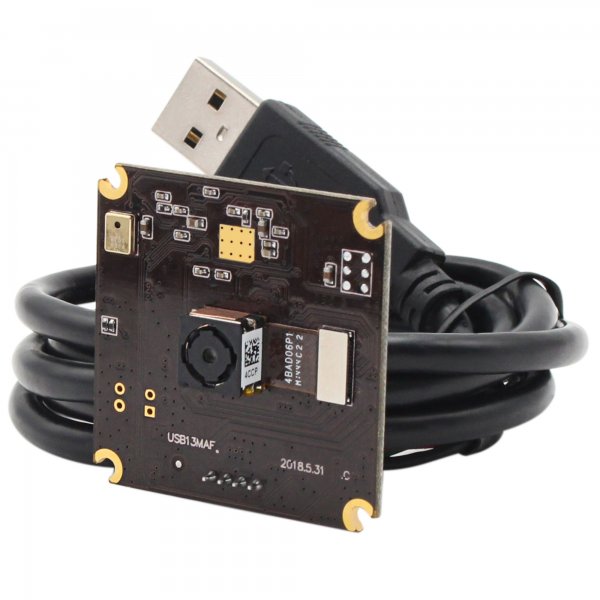

ELP-USB13MAF-V75

Sensor

IMX214 (1/3 ) AF

Max. Resolution

3840(H) *2880 (V)

Sensitivity

1000mV/Lux-sec

Image area

6100µmx4524µm

Maximum Image Transfer Rate

3840x2880@10fps MJPEG/ 3264x2448@ 15fps MJPEG

3840x2160@ 15fps MJPEG / 2592x1944@ 20fps MJPEG

2048x1536@ 30fps MJPEG /1600x1200@ 30fps MJPEG

1920x1080@ 30fps MJPEG/ 1280x1024@30fps MJPEG

1280x960@30fps MJPEG/1280x720@ 30fps MJPEG

1024 x 768@ 30fps MJPEG/ 800 x 600@ 30fps MJPEG

640x480@ 30fps MJPEG /  320x240@ 30fps MJPEG

Focus

Auto

Object distance

8CM-100M

Resolution

1000LW/PH (Center)

interface

USB 2.0 High Speed

protocol

USB Video Class（UVC）

S/N Ratio

33dB

Shutter

Rolling shutter/ frame exposure

AGC/AEC/AWB/ABF

Auto

Output Formats

YUYV/MJPEG

Adjustable parameter

Brightness Contrast Hue Saturation Sharpness Gamma White Balance  Exposure Focus

Lens Parameter

Size:  1/3,  FOV: 75Degree

Relative Illumination (Sensor): 70%

IR Filter: 650±10nm

LED board power connector

Support  2P-2.0mm socket

Power supply

USB BUS POWER  4P-2.0mm socket

Operating Voltage

DC5V

Power consumption

220mW

Module Size

38mm × 38mm

Temperature (Operation)

-20°C to 70°C

Temperature (Stable Image)

0°C to 60°C

USB Cable

1M(2M/3M/5M Optional)

Operating system request

Win XP/Vista/Win7/Win8 / Linux with UVC（above linux-2.6.26）

MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC
