ELP HD 720P MJPEG 120 degree wide angle dual lens usb camera module for People counting & tracking

Model: ELP-1MP2CAM001-HOV120

Add you Tags

Product 3/4

Return to the Product List

Details

Download

Features:

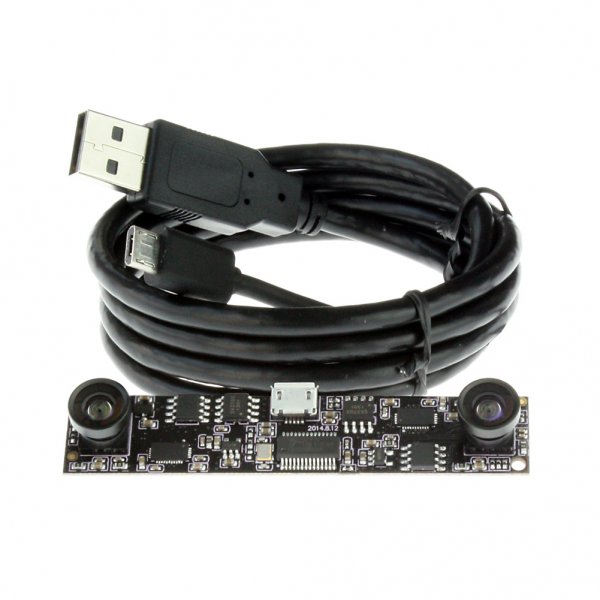

* HD 720P dual lens camera module
* 1/4” CMOS OV9712 sensor for high quality image
* With 2 pcs HD mini size M7 90 degree lens(60/120 degree)
* HD resolution up to 1280x720, two camera video stitched can reach 2560*720
* Super Mini size for embedded device
* Compact industrial camera solution for any PC with USB port
* Support Windows, Linux and Android OS with UVC
* Support USB2.0 OTG Protocol - Can be external camera for mobile phone, Tablet and other device which support OTG
* Application: Robot vision, Virtual reality, Augmented Reality, biometric Retina analyze, 3D measurement, Intelligent transportation system, People Counting & Tracking, Astrophotography etc.

Specification:

Model	ELP-1MP2CAM001-HOV120
Sensor	OV9712
Lens Size	1/4 inch
Pixel Size	3.0um X 3.0um
image area	3888 µm x 2430 µm
Max. Resolution	1280(H)X720(V)
Compression format	MJPEG / YUV2（YUYV）
Resolution & frame	1280X720 MJPEG@ 30fps YUY2@10fps 640X360MJPEG@ 60fps YUY2@30fps
USB Protocol	USB2.0 HS/FS USB1.1/USB1.0
S/N Ratio	40dB
Dynamic Range	69dB
Sensitivity	3.7V/lux-sec@550nm
Mini illumination	0. 1lux
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port type	USB2.0 High Speed
Free Drive Protocol	USB Video Class（UVC）
AEC	Support
AEB	Support
AGC	Support
Adjustable parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Backlight Contrast, Exposure
Lens Parameter	HOV: 120 degree (60/90 degree lens optional)
Power supply	USB BUS POWER Micro USB
Operating Voltage	DC5V
Working current	130mA~180mA
Working temperature	-10～70℃
Storage temperature	-20～85℃
Board size /Weight	75X15mm
Cable	Standard 90cm
Operating system request	WinXP/Vista/Win7/Win8 Linux with UVC（above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
