Item

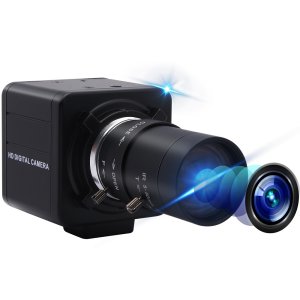

High Resolution 8MP HD USB Webcam

Model

ELP-USB8MP02G-MFV (5-50mm)

Resolution & FPS

3264X2448 Mjpeg @ 15fps                               2592X1944Mjpeg@ 20fps
2048X1536 mjpeg@ 20fps                               1600X1200 Mjpeg@ 20fps
1280X960 Mjpeg@ 20fps                                 1024X768 Mjpeg@ 30fps
800X600 Mjpeg@ 30fps                                    640X480 Mjpeg@ 30fps

Sensor

IMX179

Connecting Port Type

USB2.0 High speed

Sensor Size

1/3.2inch

Support free driver

 USB Video Class(UVC)

Pixel Size

1.4um

Shutter Type

Electronic rolling shutter/ Frame exposure

Max. Resolution

3264 (H) *2448 (V)

AEB  AEC

Support

Picture format

MJPEG or YUY2(YUYV)

AGC

Support

Lens Parameter

Varifocal 5-50mm CS lens

(2.8-12mm optional)

Adjustable parameters

 Brightness/Contrast/Saturation,
Hue, Sharpness,Gamma, Exposure
White balance,Backlight Contrast

Cable

Standard 3m / Optional 2m,5m

work temperature

 DEGREES(-20~70)

Case

With mini box case

Certifications

FCC and CE

Mini illumination

0.5lux

Power Supply

 DC 5V

USB Protocol

 USB2.0 HS/FS

Operating Voltage

180mA~240mA

OTG protocol

USB2.0 OTG

Special function

High Resolution

Night vision

without night vision

LED board power connector

Support, 2P-2.0mm socket

Support OS

WinXP/Vista/WIN7/WIN8 /WIN9/WIN10/WIN11
Linux with UVC
Mac-OS X 10.4.8 or later
Wince with UVC,
Android 4.0 or above
