ELP 800P Global Shutter Monochrome Synchronous Dual Lens USB Camera Module No Distortion 86 Degree

Product 3/4

Details

Download

Features:

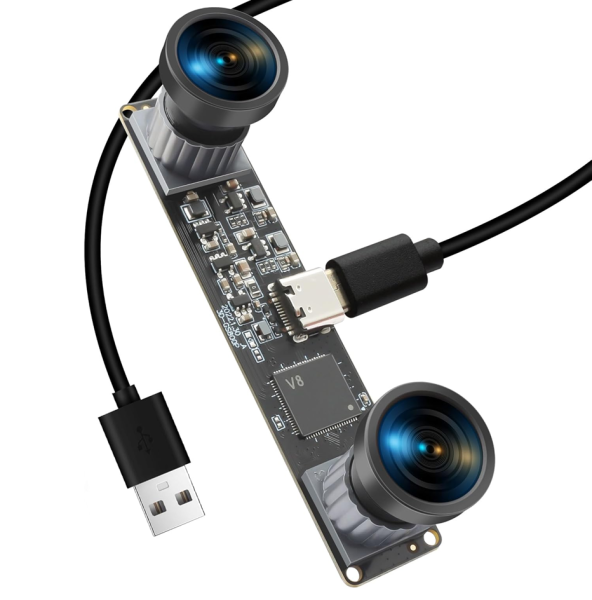

800P Global Shutter Monochrome Black/White CMOS Sensor Synchronous Dual Lens USB Camera Module

*Sensor: 1/4" OV9281 Sensor, black/white image and video

*Sychronous dual lens camera: 2 megapixel 800P dual lens usb camera (Two images Synchronized)

*High Rate: 2560X800@120fps /2560X720@120fps /1600X600@120fps /1280X480@120fps /640X240@210fps

*HD Lens: With dual lens, no distortion 86 degree horizontal view angle (Many other lens optional)

*Small size: 80x16.5mm type C connector usb camera module

*UVC free driver: Plug and Play, simple to use, suitable for all kinds of users

*System: Dual lens usb camera module for windows, linux, Mac with UVC, also for android system with UVC

Compatible with raspberry pi, Ubuntu, Opencv, Amcap and many other USB web camera software and hardware.

*Multi-applications:800P Full dual lens usb web camera for 3D VR camera, VR system, People counting system, Vision system...

*Parameters adjustable: USB web camera Parameters changable Brightness, Contrast, Saturation, White Balance, Gamma, Definition, Exposure...

*Multi Software compatible: Amcap, USB Camera, iSpy, Webcam Viewer, OpenCV, VLC, V4L2, Photo Booth, Quick Time, CameraFi...

Specifications:

Similar Products Featured

Model	ELP-USB3DGS800P-H110 (HFOV 86 degree) optional for ELP-USB3DGS800P-V83 (HFOV 63 degree) ELP-USB3DGS800P-LC1100 (HFOV 49 degree) ELP-USB3DGS800P-H100 (HFOV 75 degree) ELP-USB3DGS800P-H120 (HFOV 98 degree)
Sensor	OmniVision OV9281
Lens Size	1/4 inch
Pixel Size	3µm x3µm
Max. Resolution	2560(H)X800(V)
Default Resolution	2560(H)X800(V)
Compression Format	MJPEG
Resolution & Frame Rate	MJPEG: 2560X800@120fps/ 2560X720@120fps/ 1600X600@120fps 1280X480@120fps/640X240@210fps
Surface Mount Technology	SMT
Focus	Fixed Focus
Central Definition	600 LW/PH(Center)
S/NRatio	37dB
Dynamic Range	70dB
Sensitivity	1.4V/lux-sec@550nm
Minillumination	0.3 Lux
Shutter Type	Global Shutter
Connecting Port Type	USB2.0 High Speed
AEC	Support
AWB	Support
AdjustableParameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure
LensParameter	M12 No Distortion Lens HFOV about 86 degree, VFOV about 59 degree (Many other lens optional)
Power Supply	USB BUS POWER Type-C
Operating Voltage	DC5V
Working Current	130mA~190mA
Storage Temperature	-20～85℃
Working Temperature	-10～60℃
Board size /Weight	80X16.5mm/ About 45g
Cable	Standard 1.2M
Operating system request	WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC (above linux-2.6.26)
