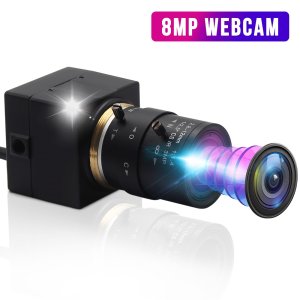

ELP 8 megapixel IMX179 HD mini PC webcam USB Camera with 2.8-12mm lens

ELP 8 megapixel IMX179 HD mini PC webcam USB Camera with 2.8-12mm lens

  • Model: ELP-USB8MP02G-SFV(2.8-12mm)
Add to Cart:

Add you Tags
Details
Download

    Features:

    * high resolution USB Camera with 1/3.2”  IMX179 sensor

    * UVC camera for use in  Win XPWin7Win8AndroidLinuxMac OS,  Support Windows Amcap, Linux Raspberry PI, Unbuntu, Opencv...kinds of hardware

    * MJPEG and YUY video compression format.

    *High speed USB 2.0 interface for high resolution PC camera interface

    *Super small case

    *With CS Varifocal 2.8-12mm lens

    *With standard 3m usb cable (2m,  5m cable optional)



    Specifications:



    Item

    High Resolution 8MP HD USB Webcam

    Model

    ELP-USB8MP02G-SFV (2.8-12mm)

    Resolution & FPS

    3264X2448 Mjpeg @ 15fps                               2592X1944Mjpeg@ 20fps
    2048X1536 mjpeg@ 20fps                               1600X1200 Mjpeg@ 20fps
    1280X960 Mjpeg@ 20fps                                 1024X768 Mjpeg@ 30fps
    800X600 Mjpeg@ 30fps                                    640X480 Mjpeg@ 30fps

    Sensor

    IMX179

    Connecting Port Type

    USB2.0 High speed

    Sensor Size

    1/3.2inch

    Support free driver

     USB Video Class(UVC)

    Pixel Size

    1.4um

    Shutter Type

    Electronic rolling shutter/ Frame exposure

    Max. Resolution

    3264 (H) *2448 (V)

    AEB  AEC

    Support

    Picture format

    MJPEG or YUY2(YUYV)

    AGC

    Support

    Lens Parameter

    Varifocal 2.8-12mm CS lens

    (5-50mm optional)

    Adjustable parameters

     Brightness/Contrast/Saturation,
    Hue, Sharpness,Gamma, Exposure
    White balance,Backlight Contrast

    Cable

    Standard 3m / Optional 2m,5m

    work temperature

     DEGREES(-20~70)

    Case

    With mini box case

    Certifications

    FCC and CE

    Mini illumination

    0.5lux

    Power Supply

     DC 5V

    USB Protocol

     USB2.0 HS/FS

    Operating Voltage

    180mA~240mA

    OTG protocol

    USB2.0 OTG

    Special function

    High Resolution

    Night vision

    without night vision

    LED board power connector

    Support, 2P-2.0mm socket

    Support OS

    WinXP/Vista/WIN7/WIN8 /WIN9/WIN10/WIN11
    Linux with UVC
    Mac-OS X 10.4.8 or later
    Wince with UVC,
    Android 4.0 or above
