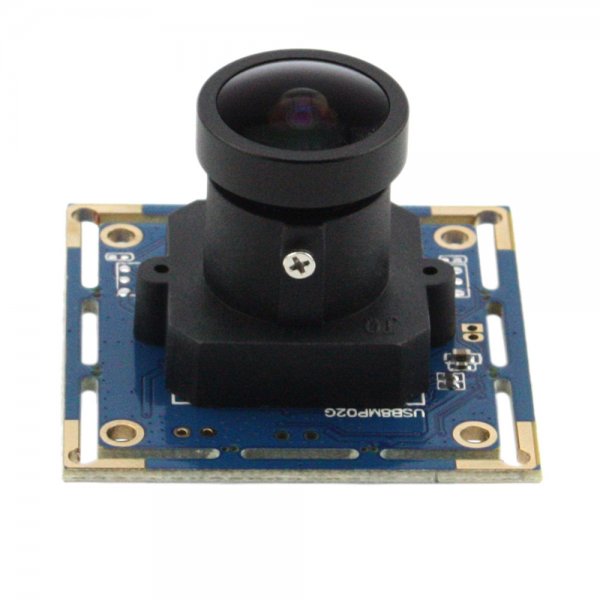

ELP 8 megapixel IMX179 CMOS Sensor high resolution wide angle USB Camera

Model: ELP-USB8MP02G-L170

Add you Tags

Product 7/19

Return to the Product List

Details

Download

Feature:

*With 1/3.2” IMX179 sensor, High Resolution, 8 megapixel, Max resolution 3264X2448

*Camera with UVC for use in Win XPWin7Win8AndroidLinuxMac OS, Support Windows Amcap, Linux Raspberry PI, Unbuntu, Opencv...kinds of hardware and software.

*MJPEG and YUY video compression format.

*High speed USB 2.0 interface for high resolution PC camera interface

*Super small outline and thin profile for embedded applications, size: 38x38mm/32x32mm

*With HD Wide angle fisheye lens L170 (2.1mm, 2.8mm, 3.6mm, 6mm, 8mm, 12mm, No distortionl lens, fisheye lens...optional)

*With standard 1m usb cable (2m, 3m, 5m cable optional, also can customize the cable as requested)

*Low power consumption- ideal for portable equipment, embedded in other machines.

Specifications:

Item	High Resolution 8MP USB camera module
Model	ELP-USB8MP02G-L170
Optional Models	ELP-USB8MP02G-L21 (2.1mm) ELP-USB8MP02G-L28 (2.8mm) ELP-USB8MP02G-L36 (3.6mm) ELP-USB8MP02G-L60 (6mm) ELP-USB8MP02G-L80 (8mm) ELP-USB8MP02G-L12 (12mm) ELP-USB8MP02G-L75 (no distortion lens HFOV about 65-70 degree) ELP-USB8MP02G-L180 (HFOV >180 degree) All above models, PCB board are same, just lens different
Resolution & FPS	3264X2448 Mjpeg @ 15fps 2592X1944Mjpeg@ 20fps 2048X1536 mjpeg@ 20fps 1600X1200 Mjpeg@ 20fps 1280X960 Mjpeg@ 20fps 1024X768 Mjpeg@ 30fps 800X600 Mjpeg@ 30fps 640X480 Mjpeg@ 30fps
Sensor	IMX179	Connecting Port Type	USB2.0 High speed
Sensor Size	1/3.2inch	Support free driver	USB Video Class(UVC)
Pixel Size	1.4um	Shutter Type	Electronic rolling shutter/ Frame exposure
Max. Resolution	3264(H) *2448 (V)	AEB AEC	Support
Picture format	MJPEG or YUY2(YUYV)	AGC	Support
Lens Parameter	Wide angle fisheye lens lens L170 HFOV about 115 degree (2.1/2.8/3.6/6/8/12mm/L180/ no distortion lens optional)	Adjustable parameters	Brightness/Contrast/Saturation, Hue, Sharpness,Gamma, Exposure White balance,Backlight Contrast
Cable	Standard 1m / Optional 2m,3m,5m	work temperature	DEGREES(-20~70)
Board Size	3838mm/32mm32mm	Certifications	FCC and CE
Mini illumination	0.5lux	Power Supply	DC 5V
USB Protocol	USB2.0 HS/FS	Operating Voltage	150mA~240mA
OTG protocol	USB2.0 OTG	Special function	High Resolution
Night vision	without night vision	LED board power connector	Support, 2P-2.0mm socket
Support OS	WinXP/Vista/WIN7/WIN8 /WIN9/WIN10/WIN11 Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC, Android 4.0 or above
