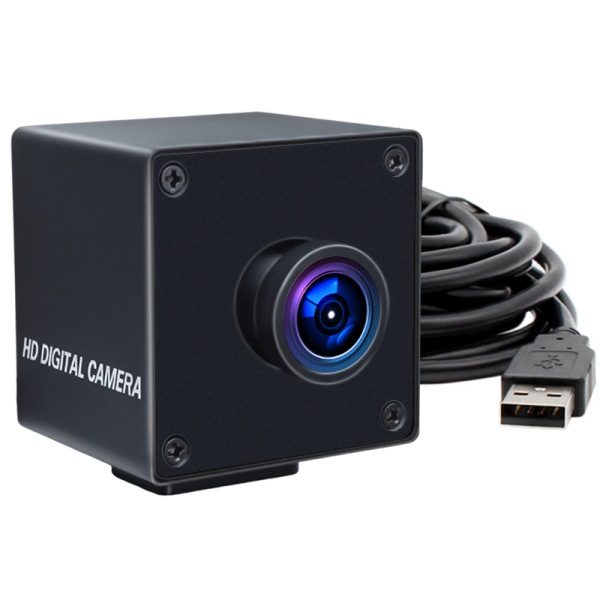

ELP 5MP 50fps 1080P 60fps Global Shutter USB Camera with No Distortion Lens Mini Case

Model: ELP-USBGS5MP01-KH110

Add you Tags

Product 18/24

Return to the Product List

Details

Download

Why Global Shutter?

A global shutter (total shutter) camera can capture an image by exposing the entire sensor at once, rather than scanning

the sensor line-by-line as in a rolling shutter camera. This means that all pixels in the image are exposed simultaneously,

resulting in an image that is free of distortion caused by motion, during exposure. It can avoid smearing when when capturing

high-speed motion.

Features:

*Item: 5 Megapixel 50FPS HD 1080P 60FPS Global Shutter USB Camera

*Sensor: 1/2.5” OmniVision OX05B1S Color Sensor

*Resolution: up to 1944P, 2592(H)*1944(V)

*High Speed: 2592x1944 Mjpeg 50FPS, 2592x1440 Mjpeg 60FPS, 1920x1080 Mjpeg 60FPS

*Lens: M12 mount no distortion lens, HFOV about 113 degree

*Sturdy Aluminum Housing:sturdy, durable, professional-looking, and easy to mount with a tripod

*USB Cable: Support different length cable, standard with 3m cable (0.3m/0.5m/1m/2m/5m...optional)

*UVC Protocal: Free driver, Plug & Play

*Parameters adjustable: Exposure, Hue, White Balance, Contrast, Gamma, Brightness....

*Operating Systems: Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI.

*Software: Compatible with different software (Amcap, iSpy, OpenCV, VLC, V4L2, Fswebcam, CameraFI, Webcamviewer, Yawcam, Photo Booth, Face time, Quick Time...)

*OTG Support: Easy connect to Android tablet, Android Smartphone via OTG cable.

*Applications: well use for shooting fast moving objects. Golf Games, Plate License Recognition, Road Monitoring, Automation Production, 3D Printer, Live Education Show, Medical Machine, Industrial Camera, Live Streaming....

Specifications:

Model	ELP-USBGS5MP01-KH110 (HFOV 113 degree) other options: ELP-USBGS5MP01-KLC1100 (HFOV 68 degree) ELP-USBGS5MP01-KV100 (HFOV 84 degree) ELP-USBGS5MP01-KV83 (HFOV 85 degree) ELP-USBGS5MP01-KH100 (HFOV 100 degree) ELP-USBGS5MP01-KH120 (HFOV 125 degree)
Sensor	1/2.5”OmniVision OX05B1S (Global Shutter)
Max Resolution(Default)	2592 (H) *1944 (V)
Sensor Size	1/2.5 inch (4:3)
Image Array Area	5737μmx4312μm
Pixel Size	2.2μmx 2.2μm
Compression Format	MJPEG / YUV2 (YUYV)
Resolution & Frame Rate	2592x1944 @ 50fps MJPEG/ 2592x1440 @ 60fps MJPEG 2560x1440 @ 60fps MJPEG/ 2304x1296 @ 60fps MJPEG 2048x1536 @ 50fps MJPEG/ 1920x1080 @ 60fps MJPEG 1600x1200 @ 50fps MJPEG/1600x900 @ 60fps MJPEG 1280x960 @ 50fps MJPEG/1280x720 @ 60fps MJPEG 1024x768 @ 50fps MJPEG/ 1024x576 @ 60fps MJPEG 960x720 @ 50fps MJPEG/ 960x540 @ 60fps MJPEG 800x600@ 50fps MJPEG/800x450 @ 60fps MJPEG 848x480 @ 60fps MJPEG/640x480 @ 50fps MJPEG 640x360 @ 60fps MJPEG/
Surface Mount Technology	SMT
Focus	FixedFocus
Central Definition	1000LW/PH (Center)
S/N Ratio	38dB
Dynamic Range	72dB
Sensitivity	1.4V/lux-sec@550nm
Min Illumination	0.1Lux
Shutter	Global Shutter
Interface	USB2.0 High Speed
AEC/AWB/AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Compensation, Exposure
Lens Parameters	M12 No Distortion Lens, HFOV about 113 degree
LED board power connector	Support 2P-2.0mm socket
Power Supply	USB BUS POWER 4P-2.0mm socket
Operating Voltage	DC 5V
Working Current	180mA- 230mA
Dimension	Metal Case: 42mmx42mm
Working Temperature	0°C to 60°C
Storage Temperature	-20°C to 80°C
USB Cable	3M (1M/2M/5M ... Optional )
Operating System Request	WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC (above linux-2.6.26) MACOS X 10.4.8 or later, Android 4.0 or above with UVC
