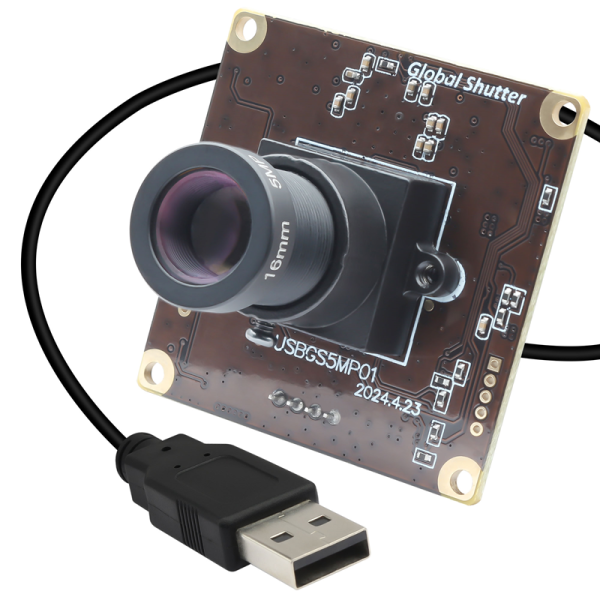

ELP 5MP 50fps 1080P 60fps Global Shutter USB Camera Module with 16mm Lens for Long Distance Capture

Model: ELP-USBGS5MP01-L16

Add you Tags

Product 8/24

Return to the Product List

Details

Download

Why Global Shutter?

A global shutter (total shutter) camera can capture an image by exposing the entire sensor at once, rather than scanning

the sensor line-by-line as in a rolling shutter camera. This means that all pixels in the image are exposed simultaneously,

resulting in an image that is free of distortion caused by motion, during exposure. It can avoid smearing when when capturing

high-speed motion.

Features:

*Item: 5 Megapixel 50FPS HD 1080P 60FPS Global Shutter USB Camera Module

*Sensor: 1/2.5” OmniVision OX05B1S Color Sensor

*Resolution: up to 1944P, 2592(H)*1944(V)

*High Speed: 2592x1944 Mjpeg 50FPS, 2592x1440 Mjpeg 60FPS, 1920x1080 Mjpeg 60FPS

*Lens: M12 mount 16mm lens, HFOV about 20 degree; option for 2.1mm/3.6mm/2.8mm/2.9mm/6mm/8mm/12mm/25mm lens

*Small size: 38x38mm and easy to be embedded in all kinds of smart machines

*USB Cable: Support different length cable, standard with 1m cable (0.3m/0.5m/2m/3m/5m...optional)

*UVC Protocal: Free driver, Plug & Play

*Parameters adjustable: Exposure, Hue, White Balance, Contrast, Gamma, Brightness....

*Operating Systems: Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI.

*Software: Compatible with different software (Amcap, iSpy, OpenCV, VLC, V4L2, Fswebcam, CameraFI, Webcamviewer, Yawcam, Photo Booth, Face time, Quick Time...)

*OTG Support: Easy connect to Android tablet, Android Smartphone via OTG cable.

*Applications: well use for long distance monitoring and shooting fast moving objects. Golf Games, Plate License Recognition, Road Monitoring, Automation Production, 3D Printer, Medical Machine, Industrial Camera

Specifications:

Model	ELP-USBGS5MP01-L16 (16mm Lens, HFOV 20 degree) other options: ELP-USBGS5MP01-L21 (2.1mm Lens, HFOV 115 degree) ELP-USBGS5MP01-L29 (2.9mm Lens, HFOV 120 degree) ELP-USBGS5MP01-L281 (2.8mm Lens, HFOV 119 degree) ELP-USBGS5MP01-L361 (3.6mm Lens, HFOV 88 degree) ELP-USBGS5MP01-L601 (6mm Lens, HFOV 57 degree) ELP-USBGS5MP01-L80 (8mm Lens, HFOV 43 degree) ELP-USBGS5MP01-L12 (12mm Lens, HFOV 25 degree) ELP-USBGS5MP01-L25 (25mm Lens, HFOV 12 degree)
Sensor	1/2.5”OmniVision OX05B1S (Global Shutter)
Max Resolution(Default)	2592 (H) *1944 (V)
Sensor Size	1/2.5 inch (4:3)
Image Array Area	5737μmx4312μm
Pixel Size	2.2μmx 2.2μm
Compression Format	MJPEG / YUV2 (YUYV)
Resolution & Frame Rate	2592x1944 @ 50fps MJPEG/ 2592x1440 @ 60fps MJPEG 2560x1440 @ 60fps MJPEG/ 2304x1296 @ 60fps MJPEG 2048x1536 @ 50fps MJPEG/ 1920x1080 @ 60fps MJPEG 1600x1200 @ 50fps MJPEG/1600x900 @ 60fps MJPEG 1280x960 @ 50fps MJPEG/1280x720 @ 60fps MJPEG 1024x768 @ 50fps MJPEG/ 1024x576 @ 60fps MJPEG 960x720 @ 50fps MJPEG/ 960x540 @ 60fps MJPEG 800x600@ 50fps MJPEG/800x450 @ 60fps MJPEG 848x480 @ 60fps MJPEG/640x480 @ 50fps MJPEG 640x360 @ 60fps MJPEG/
Surface Mount Technology	SMT
Focus	FixedFocus
Central Definition	1000LW/PH (Center)
S/N Ratio	38dB
Dynamic Range	72dB
Sensitivity	1.4V/lux-sec@550nm
Min Illumination	0.1Lux
Shutter	Global Shutter
Interface	USB2.0 High Speed
AEC/AWB/AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Compensation, Exposure
Lens Parameters	M12 16mm Lens, HFOV about 20 degree; optional for 2.1mm/3.6mm/2.8mm/2.9mm/6mm/8mm/12mm/25mm
LED board power connector	Support 2P-2.0mm socket
Power Supply	USB BUS POWER 4P-2.0mm socket
Operating Voltage	DC 5V
Working Current	180mA- 230mA
Dimension	38mmx38mm
Working Temperature	0°C to 60°C
Storage Temperature	-20°C to 80°C
USB Cable	1M (2M/3M/5M ... Optional )
Operating System Request	WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC (above linux-2.6.26) MACOS X 10.4.8 or later, Android 4.0 or above with UVC
