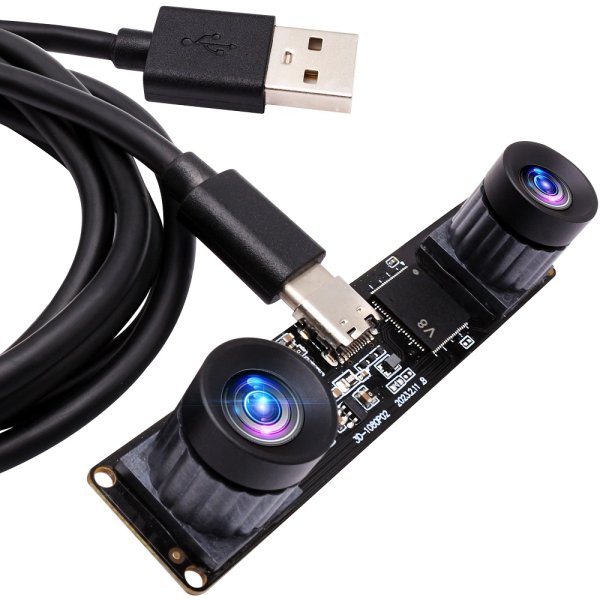

ELP 4MP 3840X1080P 60FPS Synchronous Dual Lens USB Camera module with No distortion 85 degree lens

Model: ELP-USB3D1080P02-V83

Add you Tags

Product 6/6

Return to the Product List

Details

Download

Features:

1. Sensor: Dual lens camera module with 1/2.7" JX-35 Sensor

2. Sychronous dual lens camera: 2 megapixel 1080P dual lens usb camera, (Two images Synchronized)

3. System: Dual lens usb camera module for windows, linux, Mac with UVC, also for android system with UVC

Compatible with raspberry pi, Ubuntu, Opencv, Amcap and many other USB web camera software and hardware.

4. HD Lens: With dual lens, 85 degree horizontal view angle. (Many other lens optional)

5. Small size: 80x16.5mm micro usb camera module for android

6. Multi-applications:1080P Full HD dual lens usb web camera for 3D VR camera, VR system, People counting system, Vision system...

7. Parameters adjustable: USB web camera Parameters changable Brightness, Contrast, Saturation, White Balance, Gamma, Definition, Exposure...

8. UVC free driver: Plug and Play, simple to use, suitable for all kinds of users

9. High FPS: High Speed 3D Stereo camera 3840x1080 Mjpeg 60FPS

10. Multi Software compatible: Amcap, USB Camera, iSpy, Webcam Viewer, OpenCV, VLC, V4L2, Photo Booth, Quick Time, CameraFi...

Specifications:

Model	ELP-USB3D1080P02-V83 (No distortion lens, HFOV 80-85 degree)
Optional Models	ELP-USB3D1080P02-L36 (3.6mm lens, HFOV 85-90 Degree) ELP-USB3D1080P02-LC1100 (LC1100 No distortion lens, HFOV 65 degree) ELP-USB3D1080P02-H100 (H100 No distortion lens, HFOV 95 degree) ELP-USB3D1080P02-H110 (H110 No distortion lens, HFOV 115 degree) ELP-USB3D1080P02-H120 (H120 No distortion lens, HFOV 125 degree) ELP-USB3D1080P02-L170 (L170 fisheye, HFOV 152 degree) ELP-USB3D1080P02-L180 (L180 fisheye, HFOV 187 degree) ELP-USB3D1080P02-V90 ( M9 V90 lens, HFOV 117 degree)
Sensor	JX-F35
SensorSize	1/2.7inch
Pixel Size	3.0µm x 3.0µm
Max. Resolution	3840(H)X1080(V)
Compression Format	MJPEG/ YUY2 (YUYV)
Resolution & Frame Rate	MJPEG：3840X1080@60fps/2560X720@60fps /1600X600@60fps 1280X480@60fps /640X240@60fps
Sensitivity	4.5V/lux-sec@550nm
Minillumination	0. 3lux
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port Type	USB2.0 High Speed
Free Drive Protocol	USB Video Class(UVC)
Support OTG Protocol	USB2.0 OTG
AEC	Support
AWB	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White Balance, Backlight Contrast, Exposure
Lens Parameter	M12 No Distortion Lens, HFOV 85 degree/ VFOV 56 degree
Power Supply	USB BUS POWER Type-C
Operating Voltage	DC5V
Working Current	210mA~240mA
Working Temperature	-10～70℃
Storage Temperature	-20～85℃
Board Size /Weight	80X16.5mm/ About 45g
Cable	Standard 1.2M
Operating System Request	Win XP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC(above linux-2.6.2) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
