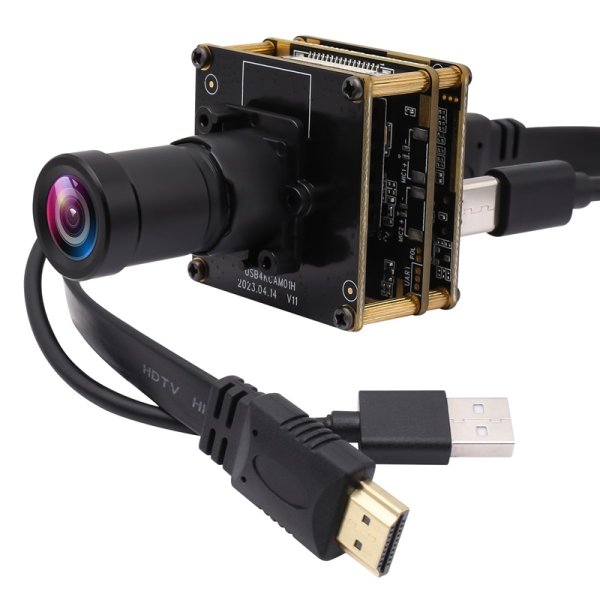

ELP 4K USB HDMI Camera Module IMX415 H.265 H.264 MJPEG 30fps with Black Light 4mm Lens

Model: ELP-USB4KCAM01H-LH4

Add you Tags

Product 14/16

Return to the Product List

Details

Download

Features:

*Sensor: 1/2.8” Sony IMX415 Sensor

*Resolution: 3840x2160

*Compression: MJPEG/YUY2/H.264/H.265

*Frame Rate: 3840x2160 MJPEG/H.264/H.265 30fps, HDMI 1920X1080 @30fps

*Lens: M16 Black light 4mm lens, for low light environment

(Optional M12 12mm/16mm/25mm, No distortion (FOV 80-125 degree), 150 degree/180 degree Fisheye lens etc. )

*Power Supply: USB Type-C Power Supply

*Interface: Type-C & HDMI

*Zoom: 2X Digital Zoom

*Cable: 2pcs Cables (1pcs 1.2m cable with Type-C & USB2.0 port; 1pcs 1.5m cable with HDMI port)

*Free Driver: UVC, driver free, Plug & Play

*Operating System: Compatible with Multi-System: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI...

Specifications:

Model	ELP-USB4KCAM01H-LH4
Sensor	1/2.8” SONY IMX415
Max Resolution	3840(H)*2160(V)
Sensitivity	0.65V/lux-sec@550nm
Pixel Size	1.45µm x 1.45µm
Video Compression	MJPEG / YUY2(YUYV) / H.264 / H.265
Digital Zoom	2X Digital Zoom
Resolution & Frame Rate	3840x2160 MJPEG 30fps/ H.264 30fps/ H.265 30fps 2560x1440 MJPEG 30fps/ H.264 30fps/ H.265 30fps 1920x1080 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 5fps 1280x720 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 10fps 1024x576 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 15fps 960x540 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 15fps 640x480 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 30fps 640x360 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 30fps
Image Processing Time	About 8 seconds after opening the preview software
Central Definition	1000LW/PH(Center)
S/N Ratio	30dB
Min illumination	0.2 Lux
Shutter Type	Electronic Rolling Shutter/ Frame Exposure
Connecting Port Type	USB 2.0 Interface &HDMI v1.4 Interface
AEC/AWB/AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Compensation, Exposure
Lens Parameter	M16 Black light 4mm lens, HFOV about 90 degree; Optional M12 12mm/16mm/25mm, No distortion (FOV 80-125 degree), 150 degree/180 degree Fisheye lens etc.
Power Supply & Interface	USB Type-C Power Supply, Type-C & HDMI Display Simultaneous
Operating Voltage	DC 5V
Working Current	480-500mA
Dimension	38mm x 38mm
Storage Temperature	-20°C to 80°C
Working Temperature	-10°C to 70°C
USB Cable	2 pieces cables (1pcs 1.2m cable with Type-C port, 1pcs 1.5m cable with HDMI port)
Operating System Request	Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC MAC-OSX10.4.8 or later Android5.x or above
Optional Models	With no distortion lens: ELP-USB4KCAM01H-V100 (HFOV about 85 degree) ELP-USB4KCAM01H-H100 (HFOV about 100 degree) ELP-USB4KCAM01H-H110 (HFOV about 110 degree) ELP-USB4KCAM01H-H120 (HFOV about 124 degree) With normal lens: ELP-USB4KCAM01H-L12 (12mm, HFOV about 25 degree) ELP-USB4KCAM01H-L16 (16mm, HFOV about 20 degree) ELP-USB4KCAM01H-L25 (25mm, HFOV about 11 degree) With M16 Black Light Lens: ELP-USB4KCAM01H-LH4 (4mm, HFOV about 90 degree) With Fisheye Lens: ELP-USB4KCAM01H-L170 (HFOV about 150 degree) ELP-USB4KCAM01H-L185 (HFOV > 180 degree)
