ELP 4K 30fps USB Camera Module with M12 3.6mm Lens SONY IMX317 Sensor ELP-USB4KHDR01-L36

Model: ELP-USB4KHDR01-L36

Add you Tags

Product 1/11

Return to the Product List

Details

Download

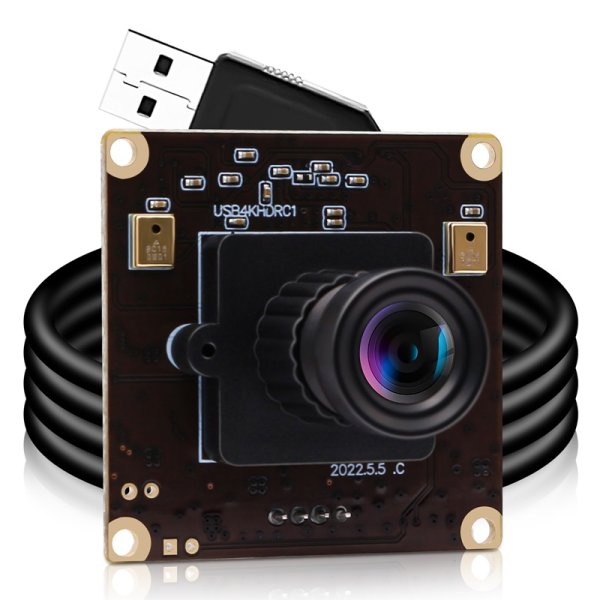

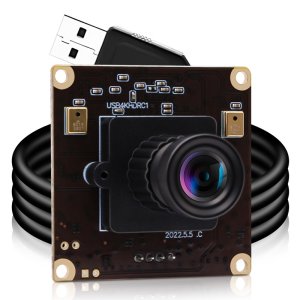

ELP 4K USB Camera Module with M12 3.6mm Lens SONY IMX317 Sensor ELP-USB4KHDR01-L36

Features:

* 4K 3840*2160 High resolution USB Camera module

* 1/2.5”Sony IMX317 sensor for high quality image

* With M12 3.6mm lens, optional for 6mm/8mm/12mm lens

* With microphones for audio recording

* High frame rate - MJPEG 3840*2160 30fps

* MJPEG/YUY2 dual outpu format optional

* Mini board size 38x38mm for embedded application

* High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface

* Low power consumption - ideal for portable equipment.

* UVC compliant - support Windows, Linux, Android system with UVC

Specifications:

Item	4K USB Camera Module with Sony IMX317 Sensor
Model	ELP-USB4KHDR01-L36 (HFOV about 95 degree) other options: ELP-USB4KHDR01-L60 (HFOV about 62 degree) ELP-USB4KHDR01-L80 (HFOV about 47 degree) ELP-USB4KHDR01-L12 (HFOV about 27 degree)
Sensor	Sony IMX317 (1/2.5” )
Max. Resolution	3840(H) *2160 (V)
Sensitivity	1000mV/Lux-sec
Image area	6100µmx4524µm
Compression format	MJPEG / YUY2（YUYV）
Resolution & Frame rate	MJPEG: 3840x2160@ 30fps / 2592x1944@ 30fps 2048x1536@ 30fps /1600x1200@ 30fps 1920x1080@ 30fps/ 1280x1024@ 30fps / 1280x960@ 30fps /1280x720@ 30fps 1024x768@ 30fps/ 800x600@/ 30fps640x480@ 30fps/ 320x240@ 30fps YUY2: 3840x2160@ 1fps / 2592x1944@ 1fps 2048x1536@ 3fps/ 1600x1200@ 3fps/ 1920x1080@ 3fps/ 1280x1024@3fps 1280x960@5fps/1280x720@ 5fps/ 1024x768@ 5fps/ 800 x 600@ 20fps 640x480@ 30fps/ 320x240@ 30fps
Center Definition	1000LW/PH (Center)
S/N (Signal Noise Ratio)	26dB
Sensitivity	0.65V/l@550
Mini illumination	0.2Lux
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port type	USB2.0 High Speed
AEC	Support
AEB	Support
AGC	Support
Adjustable parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gama, White Balance, Backlight Contrast, Exposure
Lens Parameter	HD M12 Mount 3.6mm lens, HFOV about 95 degree, DFOV 102 degree (Many other lens optional)
Power Supply & Connector	USB BUS POWER 4P-2.0mm socket
Power Voltage	DC5V
Power Current	200mA
Board Size	38*38mm
Storage Temperature	-20～70℃
Working temperature	0～60℃
USB Cable	Standard 1m ( 2m,3m,5m optional)
Operating system request	Win XP/Vista/Win7/Win8 / Win9/Win10 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC
