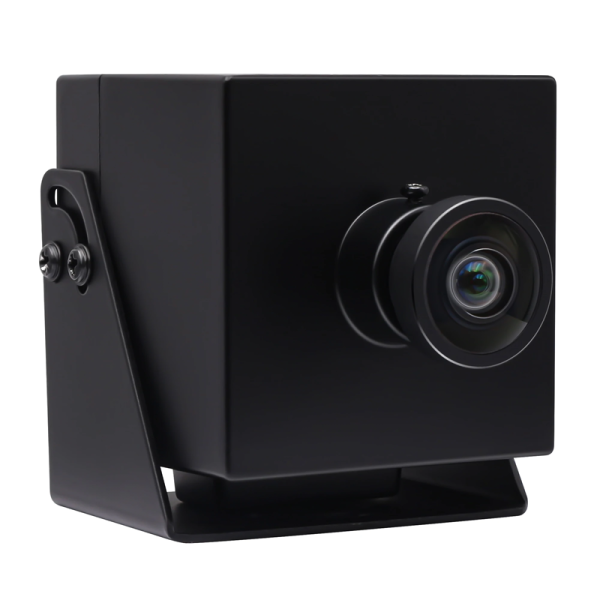

ELP 48MP High Resolution USB Camera M12 2.9mm Lens with Small Box Case

Model: ELP-USB48MP02-SL29

Add you Tags

Product 3/14

Return to the Product List

Details

Download

General Description:

This 48MP High resolution USB Camera is baded on Big 1/2" 48MP IMX586 sensor with fixed lens, USB 2.0 UVC compliant. No extra drivers needed, the native UVC drivers of Windows, Linux and Mac shall be compatible with this camera. Ultra 8000x6000 resolution meets application where high resolution images and video are required.

-High Quality Imaging: 8000x6000 resolution, adpots big 1/2" 48MP IMX586 sensor for sharp image.

-Lens: M12 2.9mm lens(many other lens for optional)

-High Color fidelity: the camera works like human eye, get sharp image and accurate color reproduction. WIth super image reality.

-Driver free, Plug & Play: UVC-compliant, free driver,easy operate.

-Applications: Small size 42.8x42.8mm, well embedded in kinds of machines, highly recommended for medical imaging, industrial inspection, Research & Development,medical machine (image analysis), high-speed photographic apparatus, photo scanner......

-Compatible with multi software & operating system: Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi...

Comptible with Amcap, iSpy, USB Camera, Fswebcam, OpenCV, VLC, Photo Booth, Facetime, Quick time , Webcam Viewer,TouchDesigner, ZoneMinder, Motion Eye OS, Yawcam....

Specifications:

Model	ELP-USB48MP02-SL29 (M12 2.9mm, HFOV 138 degree) optional for ELP-USB48MP02-SL12 (M12 12mm, HFOV 28 degree) ELP-USB48MP02-SL16 (M12 16mm, HFOV 23 degree) ELP-USB48MP02-SL25 (M12 25mm, HFOV 13 degree)
Sensor	IMX586
Max. Resolution	8000 (H) *6000 (V)
Sensor Size	1/2 inch (4:3)
Compression Format	MJPEG / YUV2 (YUYV)
Resolution & Frame Rate	8000x6000 @ 5fps MJPEG / 4000x3000 @ 12fps MJPEG 3840x2160 @ 30fps MJPEG / 1920x1080 @ 30fps MJPEG 1280x720 @ 30fps MJPEG 19201080 @5fps YUY2 / 800600 @25fps YUY2 640*480 @20fps YUY2
Surface Mount Technology	SMT
Central Definition	1000LW/ PH (Center)
S/ N Ratio	37dB
Dynamic Range	82dB
Sensitivity	1.4V/lux-sec@550nm
Min illumination	0.3lux
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port Type	USB2.0 High Speed
AEC	Support
AWB	Support
Lens Parameter	M12 2.9mm lens, HFOV 138 degree/ VFOV 101 degree; 12mm/16mm/25mm lens for optional
Power Supply	USB BUS POWER 4P-2.0mm Socket
Operating Voltage	DC 5V
Working Current	550mA- 650mA
Size	Metal case, 42.8x42.8mm
Storage Temperature	-20°C to 80°C
Working Temperature	0°C to 70°C
USB Cable	Standard 2m, optional 0.3m/0.5m/1m/1.5m
Operating System Request	Win XP/Vista/Win7/Win8 / Win10/ Win11 etc. Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
