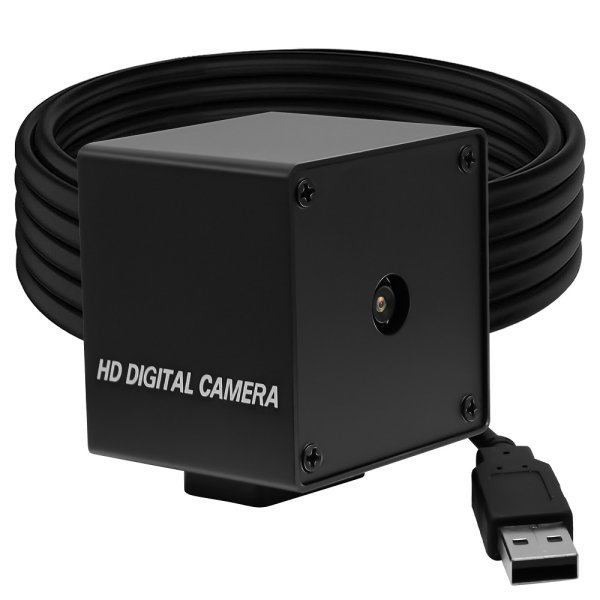

ELP 48MP High Resolution Free Driver Autofocus 70 Degree USB Camera with Mini Case

Model: ELP-USB48MP01-KAF70

Add you Tags

Product 5/5

Return to the Product List

Details

Download

General Description:

This 48MP High resolution Autofocus USB Camera is baded on Big 1/2" 48MP GM1 sensor, Autofocus, USB 2.0 UVC compliant. No extra drivers needed, the native UVC drivers of Windows, Linux and Mac shall be compatible with this camera. Fast auto control the focusing process to capture the moving objects, works like the human eye. and shots the imaging you want. Ultra 8000x6000 resolution meets application where high resolution images and video with autofocus capabilities are required.

-High Quality Imaging: 8000x6000 resolution, adpots big 1/2" 48mp sensor for sharp image.

-Fast Autofocus: 200ms fast autofocus. Shoot objects in close and far distance.

-High Color fidelity: the camera works like human eye, get sharp image and accurate color reproduction. WIth super image reality.

-Driver free, Plug & Play: UVC-compliant, free driver,easy operate.

-Applications: Small size 42x42mm, well embedded in kinds of machines, highly recommended for medical imaging, industrial inspection, Research & Development,medical machine (image analysis), high-speed photographic apparatus, photo scanner......

-Compatible with muti software & operating system: Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi...

Comptible with Amcap, iSpy, USB Camera, Fswebcam, OpenCV, VLC, Photo Booth, Facetime, Quick time, Webcam Viewer, TouchDesigner, ZoneMinder, Motion Eye OS, Yawcam....

Specifications:

Model	ELP-USB48MP01-KAF70 (FOV 70 Degree) option for ELP-USB48MP01-KAF100 (FOV 100 Degree)
Sensor	GM1 sensor
Max. Resolution	8000 (H) *6000 (V)
Lens Size	1/2 inch (4:3)
Compression Format	MJPEG / YUV2 (YUYV)
Resolution & Frame Rate	8000x6000 @ 3fps MJPEG / 4000x3000 @ 12fps MJPEG 3840x2160 @ 30fps MJPEG / 1920x1080 @ 30fps MJPEG 1280x720 @ 30fps MJPEG
Surface Mount Technology	SMT
Focus Speed	Fast About 200ms
Central Definition	1000LW/PH (Center)
S/N Ratio	36dB
Dynamic Range	82dB
Sensitivity	1.4V/lux-sec@550nm
Min illumination	0.3lux
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port Type	USB2.0 High Speed
AEC	Support
AWB	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Exposure
Lens Parameter	Size 1/2, Autofocus Lens, no distortion DFOV About 82 degree HFOV About 70 degree Mount M8.15 *P0.35
Power Supply	USB BUS POWER 4P-2.0mm Socket
Operating Voltage	DC5V
Working Current	550Ma- 610mA
Size	Board size: Double-deck, 38mm × 38mm Case size: 42x42x36mm
Storage Temperature	-20°C to 80°C
Working Temperature	0°C to 70°C
USB Cable	Standard 2m / optional 1m...
Operating System Request	Win XP/Vista/Win7/Win8 / Win10/ Win11 etc. Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
