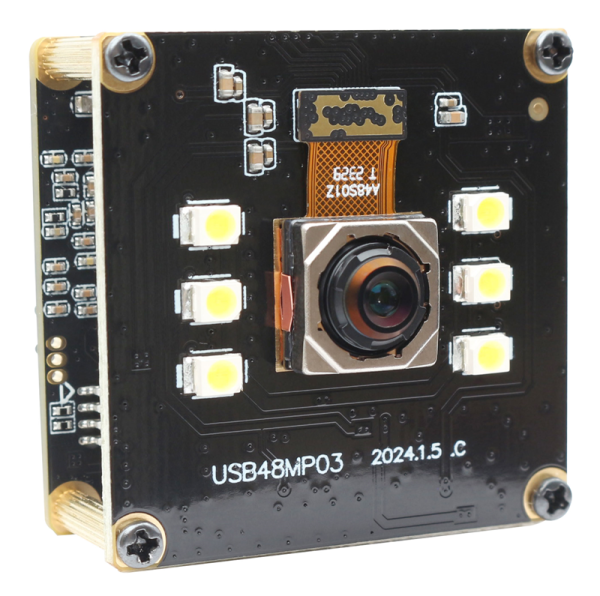

ELP 48MP High Resolution Free Driver Autofocus 70 Degree USB Camera Module with White LED

ELP 48MP High Resolution Free Driver Autofocus 70 Degree USB Camera Module with White LED

  • Model: ELP-USB48MP03-AF70
Add to Cart: Units:  100

Add you Tags
Details
Download

    General Description:

    This 48MP High resolution Autofocus USB Camera is baded on Big 1/2" 48MP GM1 sensor, Autofocus, USB 2.0 UVC compliant. No extra drivers needed, the native UVC drivers of Windows, Linux and Mac shall be compatible with this camera. Fast auto control the focusing process to capture the moving objects, works like the human eye and shots the imaging you want. Ultra 8000x6000 resolution meets application where high resolution images and video with autofocus capabilities are required.



    -High Quality Imaging: 8000x6000 resolution, adpots big 1/2" 48mp sensor for sharp image.



    -Fast Autofocus Lens:FOV 70 degree, 200ms fast autofocus. Shoot objects in close and far distance.



    -White LED: 6PCS



    -High Color fidelity: the camera works like human eye, get sharp image and accurate color reproduction. WIth super image reality.



    -Driver free, Plug & Play:UVC-compliant, free driver, easy operate.



    -Applications:Small size 38x38mm, well embedded in kinds of machines, highly recommended for medical imaging, industrial inspection, Research & Development,medical machine (image analysis), high-speed photographic apparatus, photo scanner......



    -Compatible with muti software & operating system:
    Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi...

    Comptible with Amcap, iSpy, USB Camera, Fswebcam, OpenCV, VLC, Photo Booth, Facetime, Quick time , Webcam Viewer, TouchDesigner, ZoneMinder, Motion Eye OS, Yawcam....



    Specifications:

    Model ELP-USB48MP03-AF70
    Sensor GM1
    Max. Resolution 8000 (H) *6000 (V)
    Lens Size 1/2 inch (4:3)
    Compression Format MJPEG / YUV2 (YUYV)
    Resolution & Frame Rate 8000x6000 @ 3fps MJPEG / 4000x3000 @ 12fps MJPEG
    3840x2160 @ 30fps MJPEG / 1920x1080 @ 30fps MJPEG
    1280x720 @ 30fps MJPEG
    1920*1080 @5fps YUY2 / 800*600 @25fps YUY2
    640*480 @20fps YUY2
    Surface Mount Technology SMT
    Focus Speed Fast About 200ms
    Central Definition 1000LW/PH (Center)
    S/N Ratio 36dB
    Dynamic Range 82dB
    Sensitivity 1.4V/lux-sec@550nm
    Min illumination 0.3 lux
    Shutter Type Electronic rolling shutter / Frame exposure
    Connecting Port Type USB2.0 High Speed
    AEC Support
    AWB Support
    Adjustable Parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Compensation, Exposure
    Lens Parameter Autofocus Lens, no distortion
    DFOV About 82 Degree
    HFOV About 70 Degree
    Mount M8.15 *P0.35
    LED 6PCS LED
    Power Supply USB BUS POWER  4P-2.0mm Socket
    Operating Voltage DC5V
    Working Current 550Ma- 610mA
    Board Size Double-deck, 38mm × 38mm
    Storage Temperature -20°C to 80°C
    Working Temperature 0°C to 70°C
    USB Cable Standard 1m, optional 0.3m/0.5m/1.5m/2m...
    Operating System Request

    Win XP/Vista/Win7/Win8 / Win10/ Win11 etc.

    Linux with UVC (above linux-2.6.26)
    MAC-OS X 10.4.8 or later
    Android 4.0 or above with UVC
