ELP 3840x2160 MJPEG 30fps 4K USB Camera with SONY IMX317 Sensor ELP-USB4KHDR01-V100

Product 4/10

Details

Download

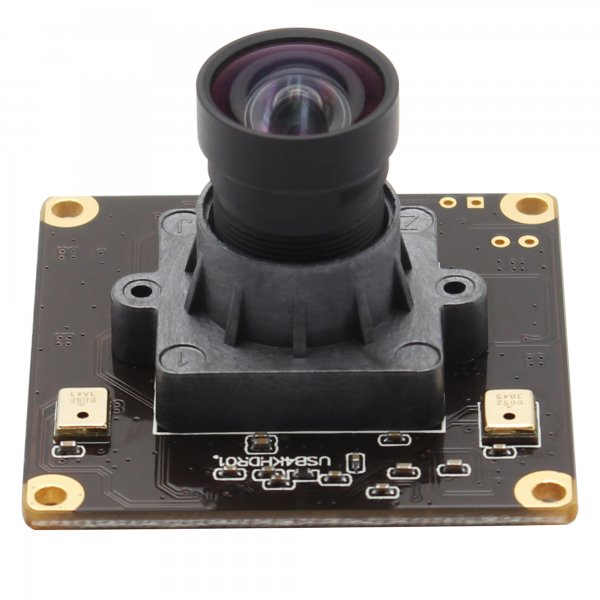

ELP 3840x2160 MJPEG 30fps 4K USB Camera with SONY IMX317 Sensor ELP-USB4KHDR01-V100

Features:

* 4K 3840*2160 High resolution USB Camera module

* 1/2.5”Sony IMX317 sensor for high quality image

* With HD 100 degree no distortion M12 lens

* With microphone for audio recording

* High frame rate - MJPEG 3840*2160 30fps

* MJPEG/YUY2 dual outpu format optional

* Mini board size 38x38mm for embedded application

* High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface

* Low power consumption - ideal for portable equipment.

* UVC compliant - support Windows, Linux, Android system with UVC

Specifications:

Model	ELP-USB4KHDR01-V100
Sensor	Sony IMX317 (1/2.5” )
Max. Resolution	3840(H) *2160 (V)
Sensitivity	1000mV/Lux-sec
Image area	6100µmx4524µm
Compression format	MJPEG / YUY2（YUYV）
Resolution & Frame rate	MJPEG: 3840x2160@ 30fps / 2592x1944@ 30fps 2048x1536@ 30fps /1600x1200@ 30fps 1920x1080@ 30fps/ 1280x1024@ 30fps / 1280x960@ 30fps /1280x720@ 30fps 1024x768@ 30fps/ 800x600@/ 30fps640x480@ 30fps/ 320x240@ 30fps YUY2: 3840x2160@ 1fps / 2592x1944@ 1fps 2048x1536@ 3fps/ 1600x1200@ 3fps/ 1920x1080@ 3fps/ 1280x1024@3fps 1280x960@5fps/1280x720@ 5fps/ 1024x768@ 5fps/ 800 x 600@ 20fps 640x480@ 30fps/ 320x240@ 30fps
Center Definition	1000LW/PH (Center)
S/N (Signal Noise Ratio)	26dB
Sensitivity	0.65V/l@550
Mini illumination	0.2Lux
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port type	USB2.0 High Speed
AEC	Support
AEB	Support
AGC	Support
Adjustable parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gama, White Balance, Backlight Contrast, Exposure
Lens Parameter	Size: 1/2.3”, FOV: 100Degree Relative Illumination (Sensor): 70% IR Filter: 650±10nm
Power Supply & Connector	USB BUS POWER 4P-2.0mm socket
Power Voltage	DC5V
Power Current	200mA
Board Size	38*38mm
Storage Temperature	-20～70℃
Working temperature	0～60℃
USB Cable	Standard 1M ( 2M,3M,5M optional)
Operating system request	Win XP/Vista/Win7/Win8 / Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC
