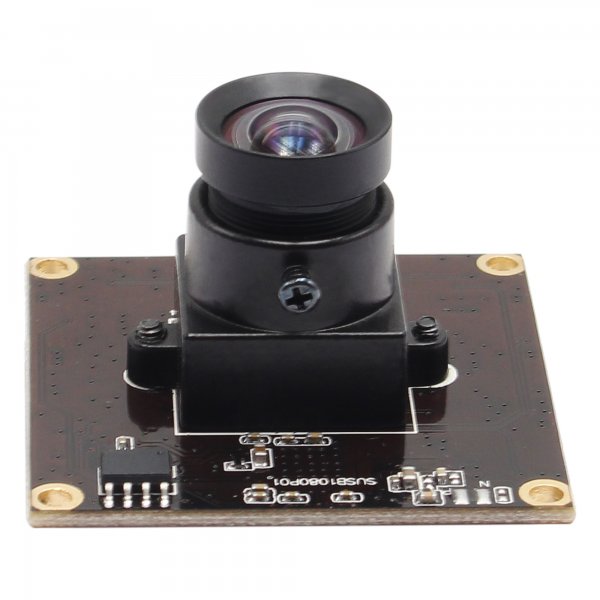

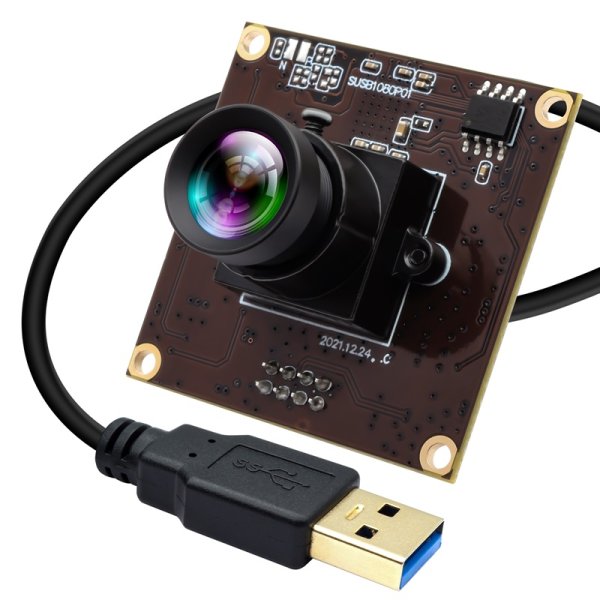

ELP 2MP Sony IMX291 Plug and play USB 3.0 CMOS machine vision cameras for medical equipment

Model: ELP-SUSB1080P01-LC1100

Add you Tags

Product 3/8

Details

Download

Features:

* 1080P USB3.0 high speed usb camera module
* 1/2.8” Sony IMX291 sensor for high quality image
* High frame rate-1920X1080 MJPEG@ 50fps/ USB3.0 1920X1080 YUY2@ 50fps
* With HD 100 degree no distortion M12 lens
* MJPEG/YUY2 dual video format optional
* Mini size 38*38MM embedded application
* High speed USB 3.0 plug&play port - suitable for any PC with USB 3.0 interface
* Low power consumption - ideal for portable equipment.
* UVC compliant - support Windows, Linux, Android system with UVC

Specification:

Model	ELP-SUSB1080P01-LC1100
Sensor	IMX291
Lens Size	1/2.8 inch
Pixel Size	2.9µm X 2.9µm
Max. Resolution	1920(H)X1080(V)
Compression format	MJPEG / YUV2（YUYV）
Resolution & frame	1920X1080 MJPEG@ 50fps/ USB3.0 1920X1080 YUY2@ 50fps 1280X720 MJPEG@ 50fps / USB3.0 1280X720 YUY2@ 50fps 640X480MJPEG@ 50fps / USB3.0 640X480 YUY2@ 50fps
S/N Ratio	40dB
Dynamic Range	65dB
Sensitivity	1900mV/lux-sec@550nm
Mini illumination	0. 01lux
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port type	USB3.0 High Speed
Free Drive Protocol	USB Video Class（UVC）
AEC	Support
AEB	Support
AGC	Support
Adjustable parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure
Lens Parameter	100 degree no distortion lens
Power supply	USB BUS POWER
Operating Voltage	DC5V
Working current	170mA~210mA
Working temperature	0～70℃
Board size /Weight	38*38mm
Cable	Standard 1M （2/3/5m optional)
Operating system request	Win8 and above Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
