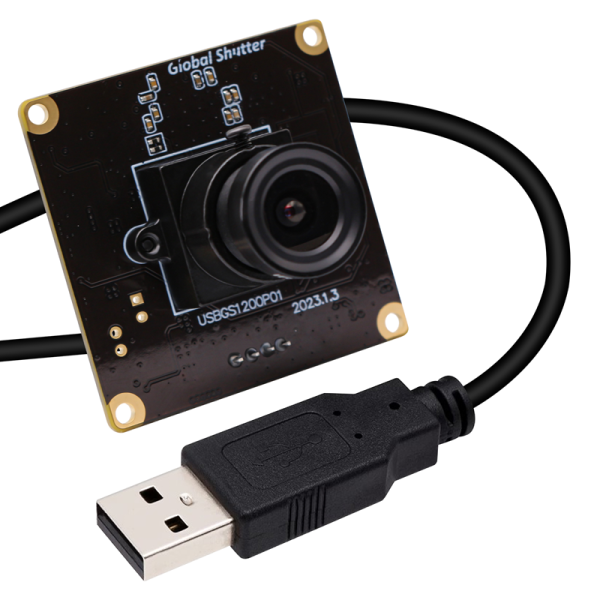

ELP 2MP Global shutter 1200P 1080P 90FPS USB Camera Module with M12 3.6mm Lens

ELP 2MP Global shutter 1200P 1080P 90FPS USB Camera Module with M12 3.6mm Lens

  • Model: ELP-USBGS1200P01-L36
Add to Cart: Units:  100

Add you Tags
Details
Download

    Why Global Shutter Camera?

    A global shutter (total shutter) camera can captures an image by exposing the entire sensor at once, rather than scanning the sensor line-by-line as in a rolling shutter camera. This means that all pixels in the image are exposed simultaneously, resulting in an image that is free of distortion caused by motion during exposure.It can avoid smearing when when capturing high-speed motion.


    Features:

    *Sensor: 1/2.6”AR0234 CMOS Sensor

    *Resolution: up to1200P, 1920(H)*1200(V)

    *High Speed/High FPS: 1920x1200 Mjpeg 90FPS, 1920x1080 Mjpeg 90FPS

    *Lens: M12 mount 3.6mm lens, 87 degree

    *Small size: 38x38mm, small size, easy to embedded in kinds of smart machines.

    *USB Cable: Support different length cable, standard with 1m cable (0.3m/0.5m/2m/3m/5m...optional)

    *UVC: Free driver, Plug & Play

    *Parameters adjustable: Exposure, Hue, White Balance, Contrast, Gamma, Brightness....

    *Operating Systems: Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI.

    *Software :Compatible with different software (Amcap, iSpy, OpenCV, VLC, V4L2, Fswebcam, CameraFI, Webcam viewer, Yawcam, Photo Booth, Face time, Quick Time...)

    *OTG Support: Easy connect to Android tablet, Android Smartphone via OTG cable.

    *Package Includes: 1PCS USB Camera Module & 1PCS 1m USB Cable


    Specifications:

    Model

    ELP-USBGS1200P01-L36

    Optional Models

    M12 Mount Lens:



    ELP-USBGS1200P01-L21 (2.1mm lens, HFOV 120 degree)
    ELP-USBGS1200P01-L28     (2.8mm lens, HFOV 114 degree)
    ELP-USBGS1200P01-L36 (3.6mm lens, HFOV 87 degree)

    ELP-USBGS1200P01-L60 (6mm lens, HFOV 57 degree)
    ELP-USBGS1200P01-L80 (8mm lens, HFOV 44 degree)
    ELP-USBGS1200P01-L12 (12mm lens, HFOV 26 degree)
    ELP-USBGS1200P01-L16 (16mm lens, HFOV 21 degree)
    ELP-USBGS1200P01-L25 (25mm lens, HFOV 12 degree)



    M12 No Distortion Lens:


    ELP-USBGS1200P01-V83 (HFOV 85 degree)
    ELP-USBGS1200P01-V100 (HFOV 85 degree)
    ELP-USBGS1200P01-LC1100 (HFOV 68 degree)
    ELP-USBGS1200P01-H100 (HFOV 101 degree)
    ELP-USBGS1200P01-H110 (HFOV 112 degree)
    ELP-USBGS1200P01-H120 (HFOV 126 degree)



    M12 Fisheye Lens:


    ELP-USBGS1200P01-L170 (HFOV 153 degree)
    ELP-USBGS1200P01-L180 (HFOV 200 degree)

    Sensor

    Aptina AR0234 (1/2.6”)Global Shutter

    Max Resolution

    1920 (H) *1200 (V)

    SensorSize

    1/2.6 inch(4:3)

    Pixel Size

    3.0μm

    Compression Format

    MJPEG / YUV2 (YUYV)

    Resolution & Frame rate

    1920x1200 @ 90fps MJPEG      1920x1080 @ 90fps MJPEG ​
    1600x1200 @ 90fps MJPEG      1280x960 @ 90fps MJPEG ​
    1280x720 @ 90fps MJPEG       1024x768 @ 90fps MJPEG ​
    960x720 @ 90fps MJPEG        800x600@ 90fps MJPEG ​
    640x480 @ 90fps MJPEG        320x240 @ 90fps MJPEG

    Surface Mount Technology

    SMT

    Focus

    Fixed

    Central Definition

    600LW/PH (Center)

    S/N Ratio

    37dB

    Dynamic Range

    70dB

    Sensitivity

    1.4V/lux-sec@550nm

    Min Illumination

    0.3lux

    Shutter

    Global Shutter

    Interface

    USB2.0 High Speed

    AEC

    Support

    AWB

    Support

    AGC

    Support

    Adjustable Parameters

    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, ​White balance, Backlight Compensation, Exposure

    Lens Parameters

    M12 3.6mm lens, HFOV about 87 degree/ VFOV 52 degree/ DFOV 100 degree

    LED board power connector

    Support 2P-2.0mm socket

    Power Supply

    USB BUS POWER4P-2.0mmsocket

    Operating Voltage

    DC5V

    Working Current

    160mA- 190mA

    Dimension

    38mmx38mm

    Storage Temperature

    -20°C to 80°C

    Working Temperature

    0°C to 60°C

    USBCable

    1M(2M/3M/5M ... Optional )

    Operating System Request

    WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. ​
    Linux with UVC (above linux-2.6.26) ​
    MAC-OS X 10.4.8 or later ​
    Android 4.0 or above with UVC
