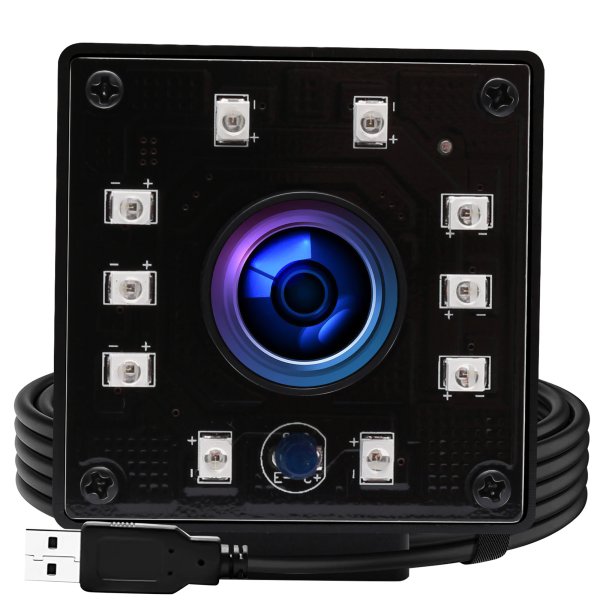

ELP 2MP Global shutter 1200P 1080P 90FPS IR LED for Day/Night Vision No Distortion USB Camera

Model: ELP-USBGS1200P01-KV100IR

Add you Tags

Product 10/20

Return to the Product List

Details

Download

Why Global Shutter?

A global shutter (total shutter) camera can captures an image by exposing the entire sensor at once, rather than scanning the sensor line-by-line as in a rolling shutter camera. This means that all pixels in the image are exposed simultaneously, resulting in an image that is free of distortion caused by motion during exposure.It can avoid smearing when when capturing high-speed motion.

Features:

*Item: 2 Megapixel HD 1080P 90FPS Global Shutter USB Camera

*Sensor: 1/2.6” AR0234 Color Sensor

*Max Resolution: up to1200P, 1920(H)*1200(V)

*High Speed: 1920x1200 MJPEG 90FPS, 1920x1080 MJPEG 90FPS

*Lens: M12 No Distortion Lens, HFOV about 85 degree

*IR LED: With 10pcs IR LED for night vision, support IR Cut filter, color image by day and black/white image by night

*USB Cable: Support different length cable, Default with 3m cable (0.3m/0.5m/2m/3m/5m...optional)

*UVC: Free driver, Plug & Play

*Parameters adjustable: Exposure, Hue, White Balance, Contrast, Gamma, Brightness, Saturation....changeable

*Operating Systems: Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI...

*Software: Compatible with different software (Amcap, iSpy, OpenCV, VLC, V4L2, Fswebcam, CameraFI, Webcam viewer, Yawcam, Photo Booth, Face time, Quick Time...)

*OTG Support: Easy connect to Android tablet, Android Smartphone via OTG cable.

*Applications: well use for shooting fast moving objects. Golf Games, Plate License Recognition, Road Monitoring, Automation Production,3D Printer, Live Education Show, Medical Machine, Industrial Camera, Live Streaming....

Specifications:

Model	ELP-USBGS1200P01-KV100IR (No Distortion Lens)
Optional Models	M12 Mount Lens: ELP-USBGS1200P01-KL21IR (2.1mm lens, HFOV 120 degree) ELP-USBGS1200P01-KL28IR (2.8mm lens, HFOV 114 degree) ELP-USBGS1200P01-KL29IR (2.9mm lens, HFOV 121 degree) ELP-USBGS1200P01-KL36IR (2.9mm lens, HFOV 87 degree) ELP-USBGS1200P01-KL60IR (6mm lens, HFOV 57 degree) ELP-USBGS1200P01-KL80IR (8mm lens, HFOV 44 degree) ELP-USBGS1200P01-KL12IR (12mm lens, HFOV 26 degree) ELP-USBGS1200P01-KL16IR (16mm lens, HFOV 21 degree) ELP-USBGS1200P01-KL25IR (25mm lens, HFOV 12 degree) ELP-USBGS1200P01-KFVIR (2.8-12mm lens, 4x optical zoom) M12 No Distortion Lens: ELP-USBGS1200P01-KV100IR (HFOV 85 degree) ELP-USBGS1200P01-KLC1100IR (HFOV 68 degree) ELP-USBGS1200P01-KH100IR (HFOV 101 degree) ELP-USBGS1200P01-KH110IR (HFOV 112 degree) ELP-USBGS1200P01-KH120IR (HFOV 126 degree) M12 Fisheye Lens: ELP-USBGS1200P01-KL170IR (HFOV 153 degree) ELP-USBGS1200P01-KL180IR (HFOV 200 degree)
Sensor	Aptina AR0234 (1/2.6”)Global Shutter
Max Resolution	1920 (H) *1200 (V)
SensorSize	1/2.6 inch(4:3)
Pixel Size	3.0μm
Compression Format	MJPEG / YUV2 (YUYV)
Resolution & Frame rate	1920x1200 @ 90fps MJPEG 1920x1080 @ 90fps MJPEG 1600x1200 @ 90fps MJPEG 1280x960 @ 90fps MJPEG 1280x720 @ 90fps MJPEG 1024x768 @ 90fps MJPEG 960x720 @ 90fps MJPEG 800x600@ 90fps MJPEG 640x480 @ 90fps MJPEG 320x240 @ 90fps MJPEG
Surface Mount Technology	SMT
Focus	Fixed
Central Definition	600LW/PH (Center)
S/N Ratio	37dB
Dynamic Range	70dB
Sensitivity	1.4V/lux-sec@550nm
Min Illumination	0.3 lux
Shutter	Global Shutter
Interface	USB2.0 High Speed
AEC	Support
AWB	Support
AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Compensation, Exposure
Lens Parameters	M12 mount No Distortion Lens, HFOV about 85 degree/ VFOV 59 degree/ DFOV 93 degree
LED board power connector	Support 2P-2.0mm socket
Power Supply	USB BUS POWER4P-2.0mmsocket
Operating Voltage	DC5V
Working Current	160mA- 190mA
Dimension	Metal Case 42mmx42mm
Storage Temperature	-20°C to 80°C
Working Temperature	0°C to 60°C
USBCable	3M(1M/2M/5M ... Optional )
Operating System Request	WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
