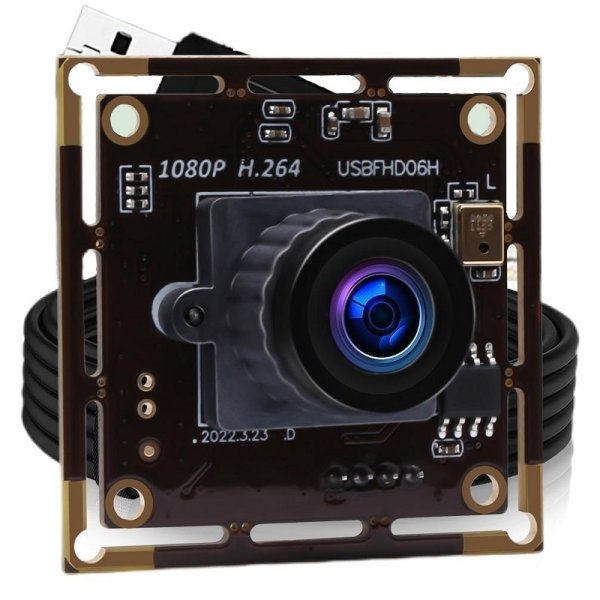

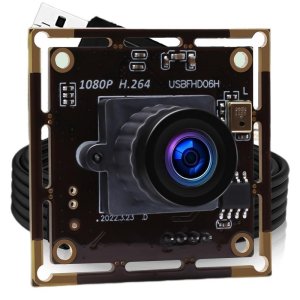

ELP 2MP full HD 1080P H.264 low light wide angle USB Camera Module with 2.1mm lens

ELP 2MP full HD 1080P H.264 low light wide angle USB Camera Module with 2.1mm lens

  • Model: ELP-USBFHD06H-L21
Add to Cart: Units:  999

Add you Tags
Details
Download

    Features:

    * 2MP Full HD 1080P: 2 megapixel 1920x1080
    * High Quality Sensor: 1/2.9" IMX323 Sensor
    * Low illumination, starlight: 0.01Lux
    * With microphone, can record audio
    * With 2.1mm lens: FOV about 65 degree
    * Lens changeable: Many other lens optional
    * Mini usb camera module with size 38x38mm (remove the surrouding edges get 32x32mm)
    * Compression:H.264/Mjpeg/YUY2
    * High Framerate: 1920x1080 H.264/Mjpeg 30FPS
    * With standard 1m cable (1m/2m/5m/0.3m/0.5m...optional)
    * UVC: free driver, Plug & Play
    * OTG support: can connect android tablet, smartphone via OTG cable
    * Adjustable Parameters: set up Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure as request.
    * Support different system: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI..
    * Compatible with multi-software: Amcap, iSpy, OpenCV, VLC, Quick Time, Photo Booth, CameraFi, USB Camera...
    * Many application, well used for printers, Vision analysis, High resolution devices, Medical machine...


    Why Choose H.264 camera?


    1. Has higher coding efficiency.
    2. Can provide high-quality video images at the low bit rate as well as the low bandwidth.
    3. H.264 can work in real-time communication application low-latency mode, such as Video Conferencing systems, Online video storage and streaming, video game consoles, mobile video through 3G/4G…


    Specification:





    Model

    ELP-USBFHD06H-L36 (3.6mm, FOV 84 degree)

    Sensor

    Sony IMX323

    Lens Size

    1/2.9 inches

    Pixel Size

    12.8X11.6 mm

    image area

    2000(H)X1121(V) approx. 2.24 M pixels

    Max. Resolution

    1080P

    Compression format

    H.264 /MJPEG / YUV2（YUYV）

    Resolution & frame

    H264: 320X240@ 30fps /352X288@ 30fps /640X360@ 30fps

                640X480@ 30fps/ 800X600@ 30fps/1280X720@ 30fps

               1920X1080@ 30fps

    MJPEG: 320X240@ 30fps /352X288@ 30fps /640X360@ 30fps

                  640X480@30fps/800X600@ 30fps/ 1280X720@ 30fps

                 1920X1080@ 30fps

    YUV: 320X240@ 30fps /352X288@ 30fps /640X360@ 30fps

               640X480@ 30fps/ 800X600@ 15 fps

    S/N Ratio

    42dB

    Dynamic Range

    86dB

    Sensitivity

    5.0V/lux-sec@550nm

    Mini illumination

    0. 01lux

    Shutter Type

    Electronic rolling shutter / Frame exposure

    Connecting Port type

    USB2.0 High Speed

    Free Drive Protocol

    USB Video Class（UVC）

    Support OTG Protocol

    USB2.0 OTG

    AEC

    Support

    AWB

    Support

    AGC

    Support

    Adjustable parameters

    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure

    Lens Parameter

    2.1mm, FOV about 104 degree (Many other lens optional)

    Digital audio

    High quality digital MIC, support single, dual channel

    LED board power

    connector

    Support 2P-2.0mm socket

    Power supply

    USB BUS POWER 4P-2.0mm socket

    Operating Voltage

    DC 5V

    Working Current

    140mA~190mA

    Working Temperature

    -10～70℃

    Storagetemperature

    -20～85℃

    Board size /Weight

    38X38mm（Compatible 32X32mm）/ about 30g

    Cable

    Standard 1M / 2M,3M,5M optional

    Operating system request

    Win7 Win8 Win10 Win11 etc. Linux 2.6 or above Android 4.0 or above Mac OS

    Optional Model

    With normal lens:
    ELP-USBFHD06H-L21 (2.1mm, FOV about 104 degree) ​
    ELP-USBFHD06H-L28 (2.8mm, FOV about 104 degree) ​
    ELP-USBFHD06H-L36 (3.6mm, FOV about 84 degree)
    ELP-USBFHD06H-L60 (6mm, FOV about 51 degree) ​
    ELP-USBFHD06H-L80 (8mm, FOV about 41 degree) ​
    ELP-USBFHD06H-L12 (12mm, FOV about 24 degree)

    With Fisheye lens:
    ​ELP-USBFHD06H-L170 (fishye lens, HFOV about 130 degree)
    ​ELP-USBFHD06H-L180 (fisheye lens, HFOV >180 degree)
    ELP-USBFHD06H-L156 ( 1.56mm >180 degree)

    With No distortion lens: ​
    ELP-USBFHD06H-L100 (FOV about 80-82 degree)
    ELP-USBFHD06H-H100 (FOV about 95 degree)
    ELP-USBFHD06H-H110 (FOV about 109 degree)
    ELP-USBFHD06H-LC1100 (FOV about 65 degree)
    ELP-USBFHD06H-L297 (FOV about 88 degree)

    ​All above models, specifications are same, just lens different
