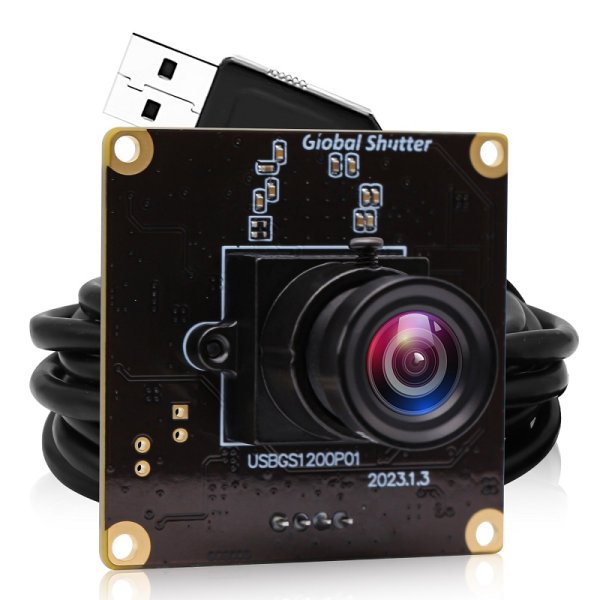

ELP 2MP AR0234 Sensor 1200P/ 1080P 90FPS Global Shutter USB Camera

Model: ELP-USBGS1200P01-V100

Add you Tags

Product 3/20

Return to the Product List

Details

Download

Why Global Shutter Camera?

A global shutter (total shutter) camera can captures an image by exposing the entire sensor at once, rather than scanning the sensor line-by-line as in a rolling shutter camera. This means that all pixels in the image are exposed simultaneously, resulting in an image that is free of distortion caused by motion during exposure.It can avoid smearing when when capturing high-speed motion.

Features:

*Sensor: 1/2.6”AR0234 CMOS Sensor

*Resolution: up to1200P, 1920(H)*1200(V)

*High Speed/High FPS: 1920x1200 Mjpeg 90FPS, 1920x1080 Mjpeg 90FPS

*Lens: Megapixel HD lens, many lens optional (Normal lens, fisheye lens, no distortion lens...) & lens changeable

*Small size: 38x38mm, small size, easy to embedded in kinds of smart machines.

*USB Cable: Support different length cable, standard with 1m cable (0.3m/0.5m/2m/3m/5m...optional)

*UVC: Free driver, Plug & Play

*Parameters adjustable: Exposure, Hue, White Balance, Contrast, Gamma, Brightness....

*Operating Systems: Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI.

*Software :Compatible with different software (Amcap, iSpy, OpenCV, VLC, V4L2, Fswebcam, CameraFI, Webcam viewer, Yawcam, Photo Booth, Face time, Quick Time...)

*OTG Support: Easy connect to Android tablet, Android Smartphone via OTG cable.

*Package Includes: 1PCS USB Camera Module & 1PCS 1m USB Cable

Specifications:

Model	ELP-USBGS1200P01-V100
Optional Models	ELP-USBGS1200P01-L21 ELP-USBGS1200P01-L28 ELP-USBGS1200P01-L36 ELP-USBGS1200P01-L60 ELP-USBGS1200P01-L80 ELP-USBGS1200P01-L12 ELP-USBGS1200P01-L16 ELP-USBGS1200P01-L25 ELP-USBGS1200P01-V83 ELP-USBGS1200P01-V100 ELP-USBGS1200P01-LC1100 ELP-USBGS1200P01-H100 ELP-USBGS1200P01-H110 ELP-USBGS1200P01-H120 ELP-USBGS1200P01-L170 ELP-USBGS1200P01-L180
Sensor	Aptina AR0234 (1/2.6”)Global Shutter
Max Resolution	1920 (H) *1200 (V)
SensorSize	1/2.6 inch(4:3)
Pixel Size	3.0μm
Compression Format	MJPEG / YUV2 (YUYV)
Resolution & Frame rate	1920x1200 @ 90fps MJPEG 1920x1080 @ 90fps MJPEG 1600x1200 @ 90fps MJPEG 1280x960 @ 90fps MJPEG 1280x720 @ 90fps MJPEG 1024x768 @ 90fps MJPEG 960x720 @ 90fps MJPEG 800x600@ 90fps MJPEG 640x480 @ 90fps MJPEG 320x240 @ 90fps MJPEG
Surface Mount Technology	SMT
Focus	Fixed
Central Definition	600LW/PH (Center)
S/N Ratio	37dB
Dynamic Range	70dB
Sensitivity	1.4V/lux-sec@550nm
Min Illumination	0.3lux
Shutter	Global Shutter
Interface	USB2.0 High Speed
AEC	Support
AWB	Support
AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Compensation, Exposure
Lens Parameters	HD V100 No Ditortion lens Optional: 2.1mm/2.8mm/3.6mm/2.9mm/6mm/8mm/12mm/16mm/25mm... No Distortion Lens (FOV 65~130 degree optional) Fisheye lens 150 degree /180 degree etc.
LED board power connector	Support2P-2.0mm socket
Power Supply	USB BUS POWER4P-2.0mmsocket
Operating Voltage	DC5V
Working Current	160mA- 190mA
Dimension	38mmx38mm
Storage Temperature	-20°C to 80°C
Working Temperature	0°C to 60°C
USBCable	1M(2M/3M/5M ... Optional )
Operating System Request	WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC

Different Lens & View Angles：

Camera Model	Lens	Resolution	Horizontal angle	Vertical angle	Diagonal angle
ELP-USBGS1200P01-L21	2.1mm	1920x1080	120.00	60.00	143.00
		1920x1200	120.00	67.00
ELP-USBGS1200P01-L28	2.8mm	1920x1080	114.00	60.00	136.00
		1920x1200	114.00	68.00
ELP-USBGS1200P01-L36	3.6mm	1920x1080	87.00	47.00	100.00
		1920x1200	87.00	52.00
ELP-USBGS1200P01-L60	6mm	1920x1080	57.00	31.00	65.00
		1920x1200	57.00	35.00
ELP-USBGS1200P01-L80	8mm	1920x1080	44.00	24.00	50.00
		1920x1200	44.00	27.00
ELP-USBGS1200P01-L12	12mm	1920x1080	26.00	14.00	29.00
		1920x1200	26.00	16.00
ELP-USBGS1200P01-L16	16mm	1920x1080	21.00	12.00	24.00
		1920x1200	21.00	13.00
ELP-USBGS1200P01-L25	25mm	1920x1080	12.00	7.00	14.00
		1920x1200	12.00	7.50
ELP-USBGS1200P01-V83	No/Macro Distortion	1920x1080	85.00	54.00	94-95
		1920x1200	85.00	60.00
ELP-USBGS1200P01-V100	No/Macro Distortion	1920x1080	85.00	53.00	93.00
		1920x1200	85.00	59.00
ELP-USBGS1200P01-LC1100	No/Macro Distortion	1920x1080	68.00	41.00	80.00
		1920x1200	68.00	46.00
ELP-USBGS1200P01-H100	No/Macro Distortion	1920x1080	101.00	67.00	108.00
		1920x1200	101.00	73.00
ELP-USBGS1200P01-H110	No/Macro Distortion	1920x1080	112.00	77.00	120.00
		1920x1200	112.00	82.00
ELP-USBGS1200P01-H120	No/Macro Distortion	1920x1080	126.00	88.00	134.00
		1920x1200	126.00	94.00
ELP-USBGS1200P01-L170	Fisheye Lens	1920x1080	153.00	84.00	180.00
		1920x1200	153.00	94.00
ELP-USBGS1200P01-L180	Fisheye Lens	1920x1080	200.00	123.00	200.00
		1920x1201	200.00	138.00
