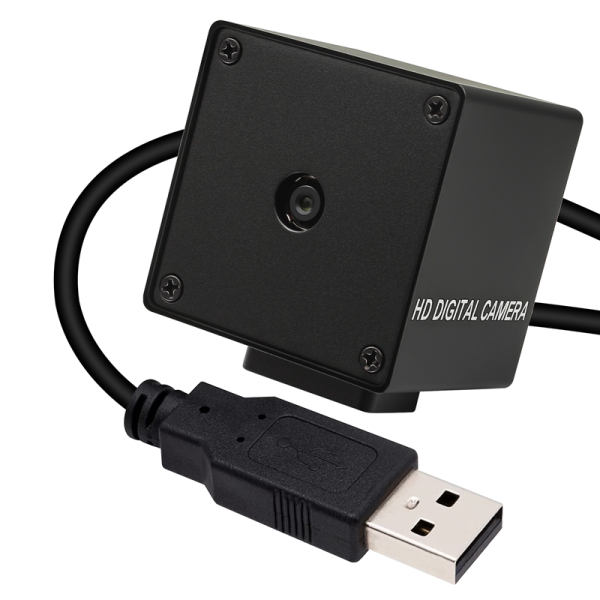

Model

ELP-USB16MP01-KAF68

Sensor

SONY IMX298

Sensor Size

1/2.8inch

Pixel Size

1.12um x 1.12um

Image Area

6.4mm x 5.3mm

Max. Resolution

4656(H) X 3496(V) 16 Megapixel

Compression Format

MJPEG / YUY2 (YUYV)

Resolution & Frame Rate

4656 x 3496 MJPEG@10fps YUY2@1fps  4208 x 3120 MJPEG@10fps YUY2@1fps
4160 x 3120 MJPEG@10fps YUY2@1fps   4000 x 3000 MJPEG@10fps YUY2@1fps
3840 x 2160 MJPEG@10fps YUY2@1fps   3264 x 2448 MJPEG@10fps YUY2@1fps
2592 x 1944 MJPEG@10fps YUY2@1fps   2320 x 1744 MJPEG@30fps YUY2@1fps
2048 x 1536 MJPEG@30fps YUY2@1fps   1920 x 1080 MJPEG@30fps YUY2@5fps
1600 x 1200 MJPEG@30fps YUY2@5fps   1280 x 960 MJPEG@30fps YUY2@10fps
1280 x 720 MJPEG@30fps YUY2@10fps   1024 x 768 MJPEG@30fps YUY2@10fps
800 x 600 MJPEG@30fps YUY2@15fps     640 x 480 MJPEG@30fps YUY2@30fps

Min Illumination

0.5 Lux

Shutter Type

Electronic Rolling Shutter / Frame Exposure

Connecting Port Type

USB2.0 High Speed

Free Drive Protocol

USB Video Class (UVC)

AEC

Support

AWB

Support

AGC

Support

Adjustable Parameters

Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure

Lens Parameter

Autofocus Lens, 3.2mm , DFOV about 78 Degree , HFOV about 68 Degree

Power Supply

USB BUS POWER 4P-2.0mm Socket

Operating Voltage

DC5V

Working Current

150mA~280mA

Working Temperature

-10~70℃

Storage Temperature

-20~85℃

Board Size /Weight

42X42MM / about 120g

Cable

Standard 3m / Optional 1m,2m,5m

Operating System Request

WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
Linux with UVC (above Linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
