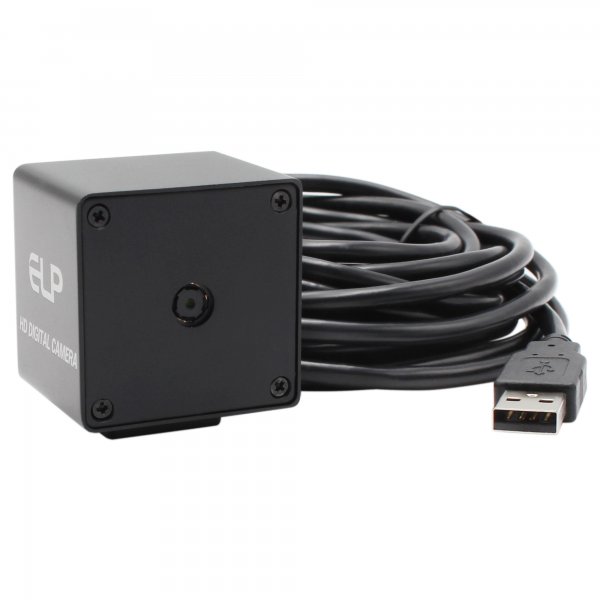

ELP 13MP Mini USB Camera Auto focus with Sony IMX317 sensor for industrial automation

Model: ELP-USB13MAF-KV75

Add you Tags

Product 13/28

Return to the Product List

Details

Download

Features:

* 13 mp 3840*2880 Ultra HD Auto Focus USB Camera

* 1/2.5”Sony IMX214 sensor for high quality image

* With HD 75 degree no distortion M12 lens

* With 41*41mm mini zise black alluminum housing

* With microphone for audio recording

* MJPEG/YUY2 dual outpu format optional

* Mini board size 38x38mm for embedded application

* High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface

* Low power consumption - ideal for portable equipment.

* UVC compliant - support Windows, Linux, Android system with UVC

Specification:

Model	ELP-USB13MAF-KV75
Sensor	IMX214 (1/3" ) AF
Max. Resolution	3840(H) *2880 (V) 13Megapixel
Sensitivity	1000mV/Lux-sec
image area	6100µmx4524µm
Compression Format	MJPEG / YUY2(YUYV)
Resolution & Frame	MJPEG: 3840x2880@10fps/ 3264x2448@ 15fps/ 3840x2160@ 15fps/ 2592x1944@ 20fps 2048x1536@ 30fps/ 1600x1200@ 30fps/ 1920x1080@ 30fps/ 1280x1024@30fps 1280x960@30fps/1280x720@ 30fps/ 1024 x 768@ 30fps/ 800 x 600@ 30fps 640x480@ 30fps / 320x240@ 30fps
Focus	Auto
Object Distance	8CM-100M
Resolution	1000LW/PH (Center)
interface	USB 2.0 High Speed
Protocol	USB Video Class(UVC)
S/N Ratio	33dB
Shutter Type	Electronic rolling shutter / Frame exposure
AGC/AEC/AWB/ABF	Auto
Adjustable parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Backlight Contrast, Exposure
Lens Parameter	Size: 1/3, FOV: 75Degree Relative Illumination (Sensor): 70% IR Filter: 650±10nm
LED board power connector	Support 2P-2.0mm socket
Power supply	USB BUS POWER 4P-2.0mm socket
Operating Voltage	DC5V
Power consumption	220mW
Board size	38X38mm
Operating Temperature	-20~70℃
Working temperature	0~60℃
Cable	Standard 1m (optional 2M,3M,5M)
Operating system request	Win XP/Vista/Win7/Win8 / Linux with UVC( Click file name to download: Similar Products Featured ELP free driver auto focus webcam ov5640 with 100 degree no... ELP SONY IMX415 Sensor day and night USB Camera 4K resolution with... Autofocus FULL HD 2MP Usb Camera Module OV2710 Color CMOS Sensor 5MP Wide angle auto focus USB Camera module wide angle OV5640 USB... ELP IMX298 Sensor mini USB CMOS Camera Module free driver plug & play... ELP camera module auto focus OV5640 USB 2.0 with 30 degree lens for... ELP 1080P Full HD usb camera module autofocus with 100 degree no... ELP 1/2.8" SONY IMX415 Color CMOS Sensor 4K Autofocus USB Camera... ELP Ultra HD 13MP Auto Focus Camera Module with SONY IMX214 CMOS... ELP 13MP Mini USB Camera Auto focus with Sony IMX317 sensor for...
