ELP 1.3MP low illumination driver free plug and play wide angle usb camera ELP-USB130W01MT-L80

Model: ELP-USB130W01MT-L180

Add you Tags

Product 16/22

Return to the Product List

Details

Download

Features:

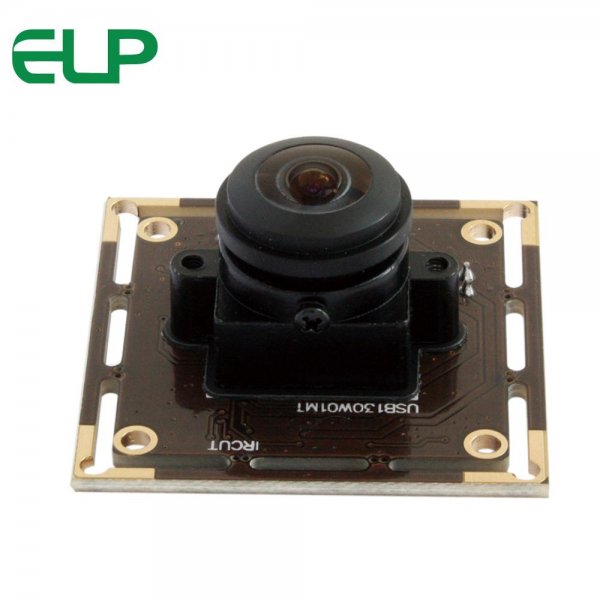

*1.3 megapixel 960P usb camera module

*180 degree fisheye lens Wide angle usb camera

* Free driver Plug and play camera module for UVC system

* AR0130 CMOS Camera Module

*High speed USB 2.0 UVC USB PC camera

*0.01Lux Low illumination USB webcam

*low light performance – ideal for any lighting condition

*UVC for use in Android, Linux, Windows XP, WIN CE, MAC, SP2 or above

*Camera with UVC

Specification:

Model	ELP-USB130W01MT-L180
Resolution & FPS	1280X960 MJPEG@ 15fps YUY2@9fps 1280X720 MJPEG@ 30fps YUY2@15fps 800X600 MJPEG@30fps YUY2@20fps 640X480 MJPEG@ 30fps YUY2@ 30fps 320X240 MJPEG@30fps YUY2@20fps 160X120 MJPEG@ 30fps YUY2@ 30fps
Sensor	Aptina AR0130	Connecting Port Type	USB2.0 High speed
Sensor Size	1/3 inch	Support free driver	USB Video Class(UVC)
Pixel Size	3.75um	Shutter Type	Electronic rolling shutter/ Frame exposure
Max. Resolution	1280(H)X960(V)	AEB AEC	Support
Picture format	MJPEG or YUY2(YUYV)	AGC	Support
Lens	Fisheye 180 degree lens (HFOV 180 degree, VFOV:135 degree) Many other lens optional	Adjustable parameters	Brightness/Contrast/Saturation, Hue, Sharpness,Gamma, Exposure White balance,Backlight Contrast
Cable	Standard 1m / Optional 2m,3m,5m	work temperature	DEGREES(-20~70)
Board Size	38x38mm/32x32mm	Certifications	FCC and CE
Mini illumination	0.01lux	Power Supply	DC 5V
USB Protocol	USB2.0 HS/FS	Operating Voltage	100mA~160mA
OTG protocol	USB2.0 OTG	Special function	Wide angle 180 degree
Night vision	Standard without night vision (Can connect IR LED board to get night vision function)	LED board power connector	Support, 2P-2.0mm socket
Support OS	WinXP/Vista/WIN7/WIN8 /WIN9/WIN10 Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC, Android 4.0 or above
Optional Models	ELP-USB130W01MT-L28 (2.8mm) ELP-USB130W01MT-L36 (3.6mm) ELP-USB130W01MT-L60 (6mm) ELP-USB130W01MT-L80 (8mm) ELP-USB130W01MT-L12 (12mm) ELP-USB130W01MT-L21 (2.1mm) ELP-USB130W01MT-L170 (Fish-eye lens) ELP-USB130W01MT-FV (2.8-12mm) Specifications are same, only lens different .
