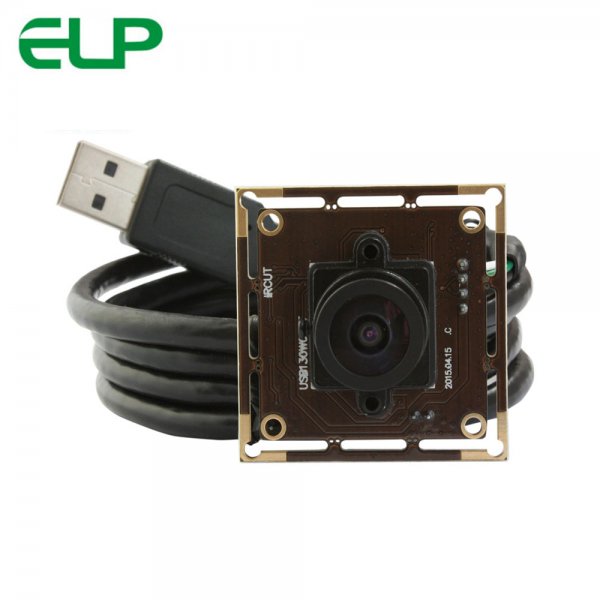

ELP 1.3MP 960P low illumination 0.01lux micro USB camera with 2.1mm lens ELP-USB130W01MT-L21

Model: ELP-USB130W01MT-L21

Add you Tags

Product 14/22

Return to the Product List

Details

Download

Features:

*960P 1280x960P HD USB Webcam

*USB Camera module for stereo camera

*Android&Linux system support UVC USB Camera

* Micron AR0130 960P sensor, low illumination camera USB

*UVC for use in Android, Linux, Windows XP, WIN CE, MAC, SP2 or above

*38x38mm/32x32mm mini micro USB Camera Module

Specifications:

Model	ELP-USB130W01MT-L21
Resolution & FPS	1280X960 MJPEG@ 15fps YUY2@9fps 1280X720 MJPEG@ 30fps YUY2@15fps 800X600 MJPEG@30fps YUY2@20fps 640X480 MJPEG@ 30fps YUY2@ 30fps 320X240 MJPEG@30fps YUY2@20fps 160X120 MJPEG@ 30fps YUY2@ 30fps
Sensor	Aptina AR0130	Connecting Port Type	USB2.0 High speed
Sensor Size	1/3 inch	Support free driver	USB Video Class(UVC)
Pixel Size	3.75um	Shutter Type	Electronic rolling shutter/ Frame exposure
Max. Resolution	1280(H)X960(V)	AEB AEC	Support
Picture format	MJPEG or YUY2(YUYV)	AGC	Support
Lens	2.1mm lens (HFOV 93 degree, VFOV:66 degree) Many other lens optional	Adjustable parameters	Brightness/Contrast/Saturation, Hue, Sharpness,Gamma, Exposure White balance,Backlight Contrast
Cable	Standard 1m / Optional 2m,3m,5m	work temperature	DEGREES(-20~70)
Board Size	38x38mm/32x32mm	Certifications	FCC and CE
Mini illumination	0.01lux	Power Supply	DC 5V
USB Protocol	USB2.0 HS/FS	Operating Voltage	100mA~160mA
OTG protocol	USB2.0 OTG	Special function	Wide angle
Night vision	Standard without night vision (Can connect IR LED board to get night vision function)	LED board power connector	Support, 2P-2.0mm socket
Support OS	WinXP/Vista/WIN7/WIN8 /WIN9/WIN10 Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC, Android 4.0 or above
Optional Models	ELP-USB130W01MT-L28 (2.8mm) ELP-USB130W01MT-L36 (3.6mm) ELP-USB130W01MT-L60 (6mm) ELP-USB130W01MT-L80 (8mm) ELP-USB130W01MT-L12 (12mm) ELP-USB130W01MT-L170 ELP-USB130W01MT-L180 (Fish-eye lens) ELP-USB130W01MT-FV (2.8-12mm) Specifications are same, only lens different .
