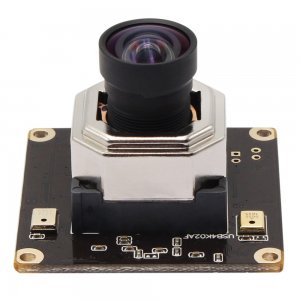

ELP 1/2.8" SONY IMX415 Color CMOS Sensor 4K Autofocus USB Camera Module

Product 1/3

Details

Download

ELP 1/2.8" SONY IMX415 Color CMOS Sensor 4K Camera Module no distortion Autofocus camera USB ELP-USB4K02AF-V100

Features:

*high resolution USB 4K Camera module, autofocus USB Camera

*38x38mm UVC camera moudle USB with No distortion lens, with about 90-95 degree FOV

*USB 2.0 Camera module 4k resolution

*UVC usb camera for use in WindowsAndroidLinuxMac OS

*HD Megapixel HD usb webcam with 1/2.8" Sony IMX415 sensor

Specifications:

Model	ELP-USB4K02AF-V100
Sensor	SONY IMX415 (1/2.8” )
Max Resolution	3840(H) *2160 (V)
Picture Size	1.45µmx1.45µm
Picture format	MJPEG / YUY2(YUYV)
Resolution & FPS	3840x2160@ 30fps MJPEG / 2592x1944@ 30fps MJPEG 2048x1536@ 30fps MJPEG /1600x1200@ 30fps MJPEG 1920x1080@ 30fps MJPEG/ 1280x960@30fps MJPE 1280x720@ 30fps MJPEG / 800 x 600@ 30fps MJPEG 640x480@ 30fps MJPEG / 320x240@ 30fps MJPEG 3840x2160@ 1fps YUY2 / 2592x1944@ 1fps YUY2 2048x1536@ 3fps YUY2 /1600x1200@ 5fps YUY2 1920x1080@ 5fps YUY2/1280x960@5fps YUY2 1280x720@ 5fps YUY2 / 800 x 600@ 20fps YUY2 640x480@ 30fps YUY2 / 320x240@ 30fps YUY2
Center Definition	1000LW/PH (Center)
S/N (Signal Noise Ratio)	30dB
Sensitivity	0.65V/lux-sec@550nm
Low illumination	0.2lux
Shutter	Electronic rolling shutter / Frame exposure
Interface	USB2.0 High Speed
AEC	Support
AEB	Support
AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gama, White Balance, Backlight Contrast, Exposure
Lens	Size: 1/2.5, FOV: 94.5Degree IR filter: 650±10nm
Power Supply & Connector	USB BUS POWER 4P-2.0mm socket
Power	DC5V
Current	200mA
Size	38mm × 38mm
Storage Temperature	-20°C to 70°C
Working Temperature	0°C to 60°C
USB Cable	1M(2M/3M/5M Optional)
Operating System	Win XP/Vista/Win7/Win8 / Win9/ Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC
