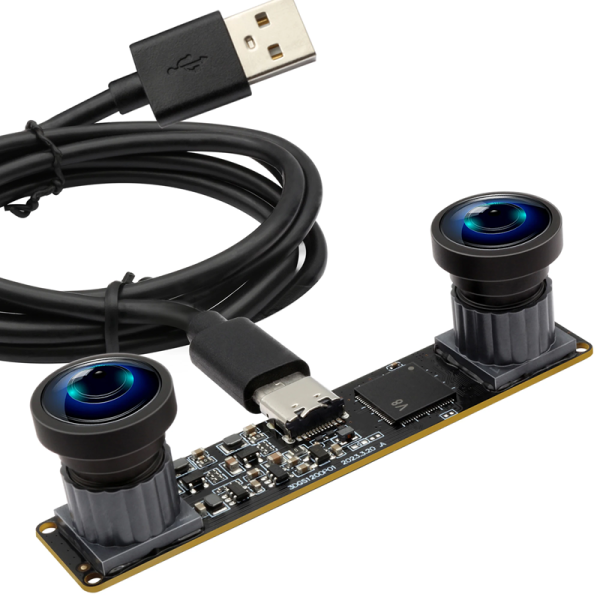

ELP 1200P Global Shutter Synchronous Dual Lens USB Camera Module No Distortion 112 Degree

ELP 1200P Global Shutter Synchronous Dual Lens USB Camera Module No Distortion 112 Degree

  • Model: ELP-USB3DGS1200P01-H120
 Sold Out

Add you Tags
Details
Download

    Features:



    1200P Global Shutter Color CMOS Sensor Synchronous Dual Lens USB Camera Module



    *Sensor: 1/2.9" OG02B10 Sensor, color image and video



    *Sychronous dual lens camera: 4 megapixel 1200P dual lens usb camera (Two images Synchronized)



    *High Rate: 3200X1200@60fps /2560X720@60fps /1600X600@120fps /1280X480@120fps /640X240@120fps



    *HD Lens: With dual lens, no distortion 112 degree horizontal view angle (Many other lens optional)



    *Small size: 80x16.5mm type C connector usb camera module



    *UVC free driver: Plug and Play, simple to use, suitable for all kinds of users



    *System: Dual lens usb camera module for windows, linux, Mac with UVC, also for android system with UVC

     Compatible with raspberry pi, Ubuntu, Opencv, Amcap and many other USB web camera software and hardware.



    *Multi-applications: 1200P Full dual lens usb web camera for 3D VR camera, VR system, People counting system, Vision system...



    *Parameters adjustable: USB web camera Parameters changable  Brightness, Contrast, Saturation, White Balance, Gamma, Definition, Exposure...



    *Multi Software compatible: Amcap, USB Camera, iSpy, Webcam Viewer, OpenCV, VLC, V4L2, Photo Booth, Quick Time, CameraFi...



    *Shutter Type: The global shutter sensor's excellent low-light sensitivity makes it shoot crisp sharp and accurate complete images even for high-speed moving objects. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras.





    Specifications:





    Model

    ELP-USB3DGS1200P01-H120 (HFOV 112 degree)


    optional for

    ELP-USB3DGS1200P01-V83 (HFOV 75 degree)

      ELP-USB3DGS1200P01-LC1100 (HFOV 58 degree)
      ELP-USB3DGS1200P01-H100 (HFOV 83 degree)
      ELP-USB3DGS1200P01-H110 (HFOV 100 degree)


    Sensor

    OG02B10

    Lens Size

    1/2.9 inch

    Pixel Size

    4857µm x 3955 µm

    Max. Resolution

    3200(H)X1200(V)

    Default Resolution

    3200(H)X1200(V)

    Compression Format

    MJPEG

    Resolution & Frame Rate

    MJPEG:

    3200X1200@60fps / 2560X720@60fps / 1600X600@120fps 1280X480@120fps / 640X240@120fps

    Surface Mount Technology

    SMT

    Focus

    Fixed Focus

    Free Drive Protocol

      USB Video Class(UVC)

    Sensitivity

    3.7V/lux-sec@550nm

    Minillumination

    0.1 Lux

    Shutter Type

    Global Shutter

    Connecting Port Type

    USB2.0 High Speed

    AEC

    Support

    AWB

    Support

    AdjustableParameters

    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure

    LensParameter

    M12 No Distortion Lens

    HFOV: 112 degree,

    VFOV: 93 degree

    (Many other lens optional)

    Power Supply

    USB BUS POWER Type-C

    Operating Voltage

    DC5V

    Working Current

    180mA~230mA

    Storage Temperature

    -20~85℃

    Working Temperature

    -10~60℃

    Board size /Weight

    80X16.5mm/ About 45g

    Cable

    Standard 1.2M
