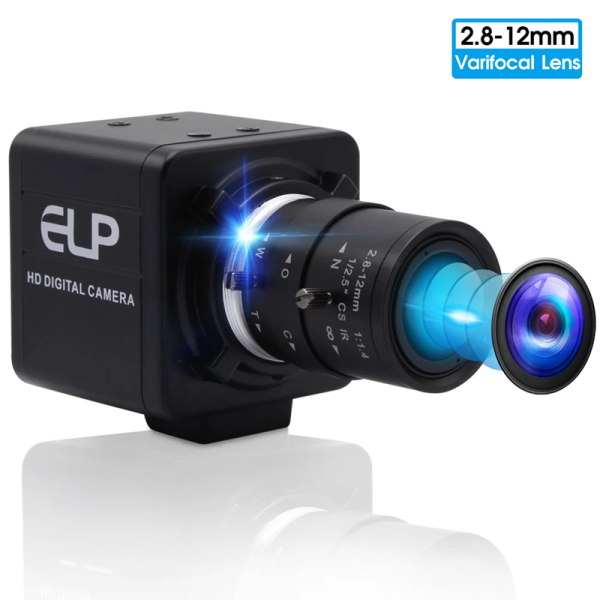

ELP 1200P 1080P 90FPS Global shutter USB Camera with CS 2.8-12mm 4X Optical Zoom Manual Lens

Model: ELP-USBGS1200P01-MFV(2.8-12)

Add you Tags

Product 1/20

Return to the Product List

Details

Download

Why Global Shutter?

A global shutter (total shutter) camera can captures an image by exposing the entire sensor at once, rather than scanning the sensor line-by-line as in a rolling shutter camera. This means that all pixels in the image are exposed simultaneously, resulting in an image that is free of distortion caused by motion during exposure.It can avoid smearing when when capturing high-speed motion.

Features:

*Item: 2 Megapixel HD 1080P 90FPS Global Shutter USB Camera

*Sensor: 1/2.6” AR0234 Color Sensor

*Max Resolution: up to1200P, 1920(H)*1200(V)

*High Speed: 1920x1200 MJPEG 90FPS, 1920x1080 MJPEG 90FPS

*Lens: Megapixel CS 2.8-12mm 4X Optical Zoom Manual lens (Many other CS lens optional, CS 5-50mm, CS 6-60mm, CS 3.6-10mm, CS 4mm, CS 6mm, CS 8mm, CS 12mm...)

*USB Cable: Support different length cable, Default with 3m cable (0.3m/0.5m/2m/3m/5m...optional)

*UVC: Free driver, Plug & Play

*Parameters adjustable: Exposure, Hue, White Balance, Contrast, Gamma, Brightness, Saturation....changeable

*Operating Systems: Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI...

*Software: Compatible with different software (Amcap, iSpy, OpenCV, VLC, V4L2, Fswebcam, CameraFI, Webcam viewer, Yawcam, Photo Booth, Face time, Quick Time...)

*OTG Support: Easy connect to Android tablet, Android Smartphone via OTG cable.

*Applications: well use for shooting fast moving objects. Golf Games, Plate License Recognition, Road Monitoring, Automation Production,3D Printer, Live Education Show, Medical Machine, Industrial Camera, Live Streaming....

Specifications:

Model	ELP-USBGS1200P01-MFV(2.8-12)
Sensor	Aptina AR0234 (1/2.6”)Global Shutter
Max Resolution	1920 (H) *1200 (V)
Sensor Size	1/2.6 inch (4:3)
Pixel Size	3.0μm
Compression Format	MJPEG / YUV2 (YUYV)
Resolution & Frame rate	1920x1200 @ 90fps MJPEG/1920x1080 @ 90fps MJPEG 1600x1200 @ 90fps MJPEG/1280x960 @ 90fps MJPEG 1280x720 @ 90fps MJPEG/1024x768 @ 90fps MJPEG 960x720 @ 90fps MJPEG/800x600@ 90fps MJPEG 640x480 @ 90fps MJPEG/320x240 @ 90fps MJPEG
Surface Mount Technology	SMT
Focus	Fixed
Central Definition	600LW/PH (Center)
S/N Ratio	37dB
Dynamic Range	70dB
Sensitivity	1.4V/lux-sec@550nm
Min Illumination	0.3lux
Shutter	Global Shutter
Interface	USB2.0 High Speed
AEC	Support
AWB	Support
AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Compensation, Exposure
Lens Parameters	With CS mount 2.8-12mm lens, 4x optical zoom (Many other CS lens optional)
Power Supply	USB BUS POWER4P-2.0mmsocket
Operating Voltage	DC5V
Working Current	160mA- 190mA
Storage Temperature	-20°C to 80°C
Working Temperature	0°C to 60°C
USB Cable	3M(1M/2M/5M ... Optional )
Operating System Request	WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above
Optional Models	ELP-USBGS1200P01-MFV(5-50) (10x optical zoom) ELP-USBGS1200P01-MFV(3.6-10) (3x optical zoom)ELP-USBGS1200P01-MFV(6-60) (10x optical zoom)ELP-USBGS1200P01-MF40 (CS 4mm) ELP-USBGS1200P01-MF60 (CS 6mm) ELP-USBGS1200P01-MF80 (CS 8mm) ELP-USBGS1200P01-MF12 (CS 12mm) ELP-USBGS1200P01-MFV (without lens)
