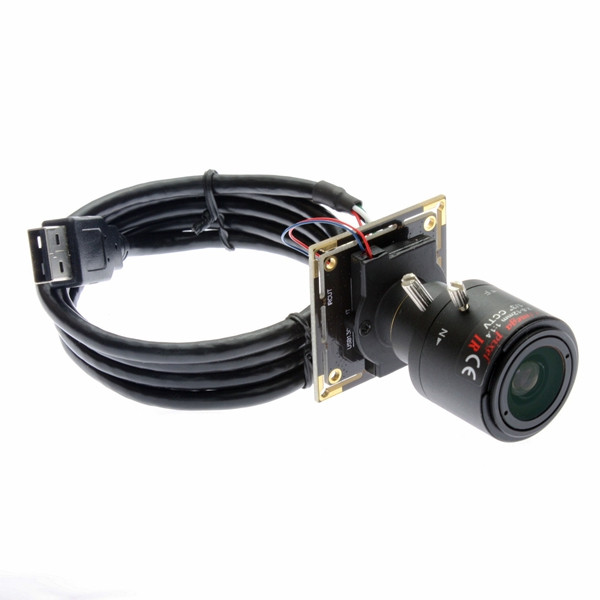

Model

ELP-USB130W01MT-FV

Sensor

Aptina AR0130

Lens Size

1/3 inch

Pixel Size

3.75um

Max. Resolution

1280(H)X960(V)

Compression format

MJPEG  / YUV2（YUYV）

Resolution & frame

1280X960 MJPEG@ 15fps YUY2@9fps/ 1280X720MJPEG@ 30fps YUY2@15fps

800X600 MJPEG@30fps YUY2@20fps/ 640X480 MJPEG@ 30fps YUY2@ 30fps

320X240 MJPEG@30fps YUY2@20fps/ 160X120 MJPEG@ 30fps YUY2@ 30fps

S/N Ratio

44dB

Dynamic Range

83.5dB

Sensitivity

5.5V/lux-sec@550nm

Mini illumination

0. 01lux

Shutter Type

Electronic rolling shutter / Frame exposure

Connecting Port type

USB2.0 High Speed

OTG protocol

USB2.0 OTG

Free Drive Protocol

USB Video Class（UVC）

AEC

Support

AEB

Support

AGC

Support

Adjustable parameters

Brightness,  Contrast, Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, Exposure

Lens Parameter

2.8-12mm megapixel varifocal lens, optional 2.1/2.8/3.6/6mm/ FOV(D)170 Degree

IR CUT Connector

Support  2P-1.25mm socket

LED board test connector

Support  2P-1.25mm socket

LED board power connector

Support  2P-2.0mm socket

Power supply

USB BUS POWER  4P-2.0mm socket

Power supply

DC5V

Operating Voltage

100mA~160mA

Working current

 0～70℃

Working temperature

-20～75℃

Board size /Weight

38X38mm（Compatible 32X32mm）/ about 30g

Cable

Standard  1M / optional 2M,3M,5M

Operating system request

WinXP/Vista/Win7/Win8

Linux with UVC（above linux-2.6.26）

MAC-OS X 10.4.8 or later

Wince with UVC

Android 4.0 or above with UVC
