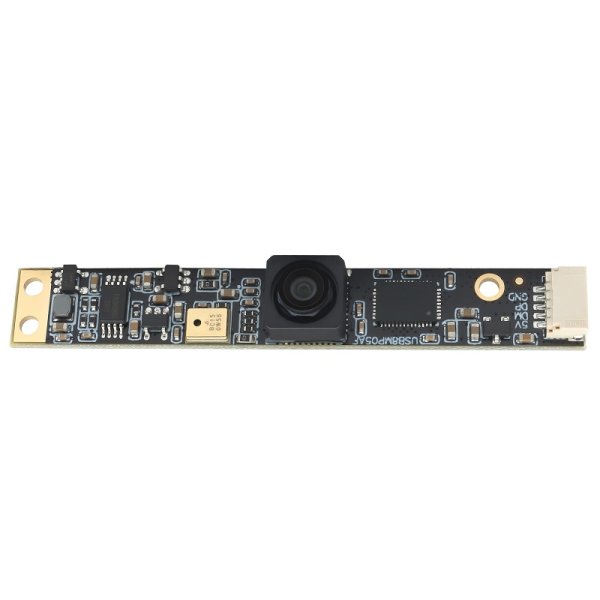

8MP Long strip fixed focus USB Cameras with 102 degree lens

Product 2/19

Details

Download

Features:

* 8 Megapixel High Resolution 3264x2448

* Autofocus, focus and get clear image automatically.

* 1/3.2” CMOS IMX179 sensor for super sharp image

* with 1.2m usb cable

* Long strip design, dimension:62.3x9mm

* With HFOV 102 degree lens (HFOV 64 degree, 105 degree lens optional)

* UVC: free driver, plug & Play

* Support different system: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI..

* Compatible with multi-software: Amcap, iSpy, OpenCV, VLC, Quick Time, Photo Booth, CameraFi, USB Camera...

Specifications:

Model	ELP-USB8MP05AF-FF102 (HFOV 102 degree)
Optional Models	ELP-USB8MP05AF-FF64 (HFOV 64 degree) ELP-USB8MP05AF-FF105 (HFOV 105 degree)
Sensor	IMX179
Sensor Size	1/3.2inch
Pixel Size	1.4µmx1.4µm
Image Area	6.18mm x 5.85mm
Max. Resolution	3264(H) X 2448(V) 8Megapixel
Compression Format	MJPEG / YUY2(YUYV)
Resolution & Frame Rate	3264X2448 MJPEG@15fps YUY2@1fps / 2592X1944 MJPEG@15fps YUY2@2fps 2048X1536 MJPEG@15fps YUY2@3fps / 1600X1200 MJPEG@30fps YUY2@5fps 1920X1080 MJPEG@30fps YUY2@5fps / 1280X960 MJPEG@30fps YUY2@5fps 1280X720 MJPEG@30fps YUY2@10fps / 1024X768 MJPEG@30fps YUY2@10fps 800X600 MJPEG@30fps YUY2@25fps / 640X480 MJPEG@30fps YUY2@30fps 320X240 MJPEG@30fps YUY2@30fps
Focus	Auto
S/N Ratio	34dB
Dynamic Range	72.5dB
Sensitivity	0.65V/Lux-sec@550nm
Min Illumination	0.5Lux
Shutter Type	Electronic Rolling Shutter /Frame Exposure
Connecting Port Type	USB2.0 High Speed
Free Drive Protocol	USB Video Class(UVC)
OTG Protocol	USB2.0 OTG
AGC	Auto
AEC	Auto
AWB	Auto
Adjustable Parameters	Brightness,Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure
Lens Parameter	HFOV about 102 degree (64 degree, 105 degree optional)
Power Supply	USB BUS POWER 4P-2.0mm socket
Operating Voltage	DC5V
Working Current	150mA~240mA
Working Temperature	-10~70℃
Storage Temperature	-20~85℃
Board Size/Weight	62.3x9mm/ about 20g
Cable	1.2m
Operating System	WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
