5MP USB Camera Module IMX335 Sensor 30fps with CS Varifocal Zoom 5-50mm Lens Mini Case

Product 7/26

Details

Download

Features:

*5MP HD USB Camera Board with 1/2.8” IMX335 sensor

*High resolution/Rate 2592x1944 MJPEG@30fps

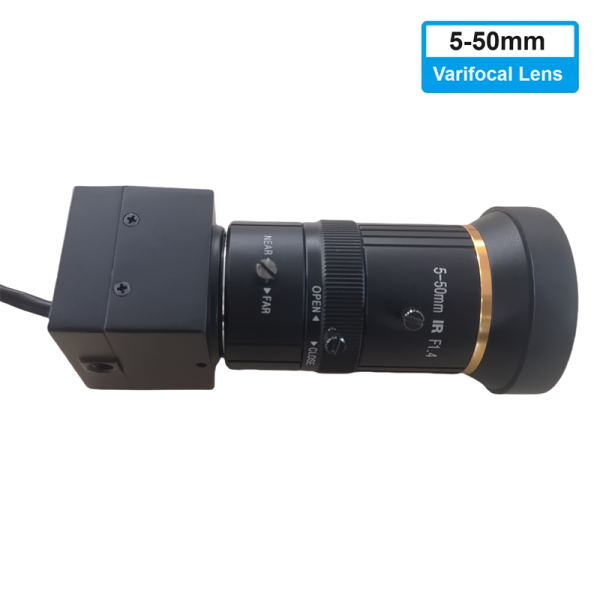

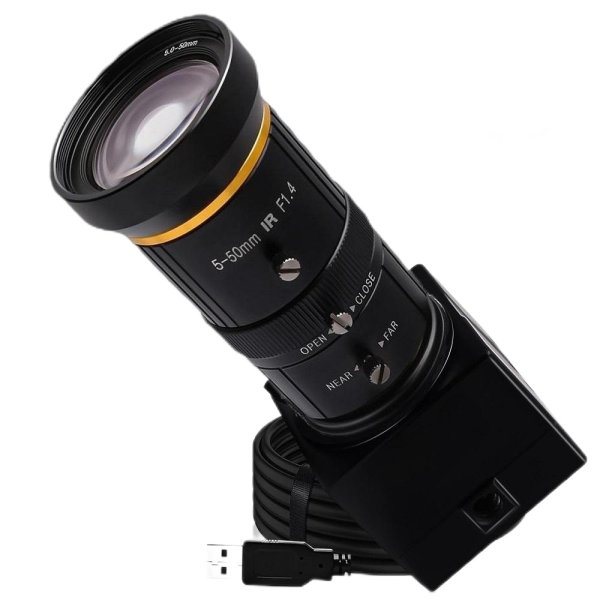

*Lens: CS Mount Varifocal Lens 5-50mm Lens, 10X optical zoom

*High speed USB 2.0 interface for high resolution PC camera interface

*Super small outline and thin profile for embedded applications. 38x38mm/32x32mm optional

*Low power consumption – ideal for portable equipment

*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above

*Camera with UVC

Specifications:

Model	ELP-USB500W07-SFV(5-50)
Sensor	SONY IMX335 (1/2.8” )
Max Resolution	2592(H) *1944 (V)
Pixel Size	2.0µm x2.0µm
Image Area	5800µmx4750µm
Picture Format	MJPEG / YUY2 (YUYV)
Resolution & Frame Rate	2592x1944 MJPEG 30fps/ YUY2 1fps 2048x1536 MJPEG 30fps/ YUY2 3fps 1920x1080 MJPEG 30fps/ YUY2 3fps 1600x1200 MJPEG 30fps/ YUY2 5fps 1280x960 MJPEG 30fps/ YUY2 5fps 1280x720 MJPEG 30fps / YUY2 5fps 1024 x 768 MJPEG 30fps/ YUY2 5fps 800 x 600 MJPEG 30fps / YUY2 20fps 640x480 MJPEG 30fps / YUY2 30fps 320x240 MJPEG 30fps / YUY2 30fps
Center Definition	1000LW/ PH (Center)
S/ N (Signal Noise Ratio)	30dB
Sensitivity	0.65V/lux-sec@550nm
Min. illumination	0.2 Lux
Shutter	Electronic rolling shutter / Frame exposure
Interface	USB2.0 High Speed
AEC	Support
AWB	Support
AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure
Lens	CS Mount Varifocal Lens 5-50mm Lens; optional for CS 2.8-12mm lens
Power Supply & Connector	USB BUS POWER 4P-2.0mm socket
Power	DC 5V
Current	210mA
Size	Board size: 38mm × 38mm (compatible 32X32mm) Case size: 39mm × 39mm
Storage Temperature	-20°C to 75°C
Working Temperature	- 10°C to 65°C
USB Cable	3M(1M/2M/5M Optional)
Operating System	Win XP/Vista/Win7/Win8 / Win9/Win10/Win11 etc. Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
