Model

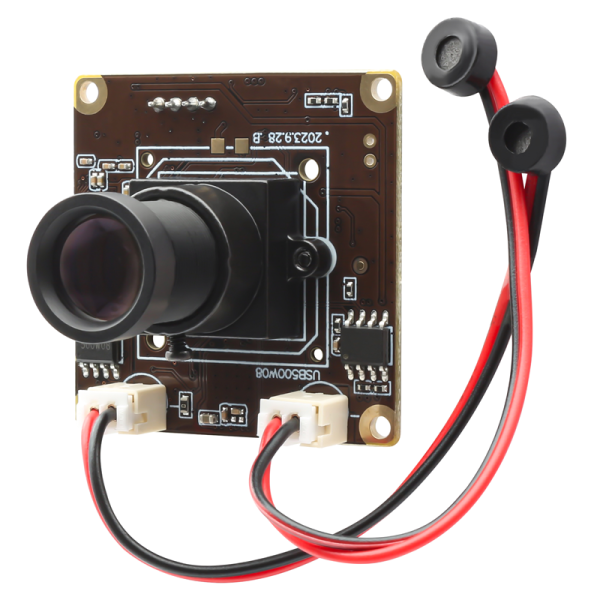

ELP-USB500W08-L25 (M12 25mm lens)

Sensor

SONY IMX335 (1/2.8” )

Max Resolution

2592(H) *1944 (V)

Pixel Size

2.0µm x2.0µm

Image Area

5800µmx4750µm

Picture Format

MJPEG / YUY2 (YUYV)

Resolution & Frame Rate

2592x1944 MJPEG 30fps/ YUY2 1fps

2048x1536 MJPEG 30fps/ YUY2 3fps

1920x1080 MJPEG 30fps/ YUY2 3fps

1600x1200 MJPEG 30fps/ YUY2 5fps

1280x960 MJPEG 30fps/ YUY2 5fps

1280x720 MJPEG 30fps / YUY2 5fps

1024 x 768 MJPEG 30fps/ YUY2 5fps

800 x 600 MJPEG 30fps / YUY2 20fps

640x480 MJPEG 30fps / YUY2 30fps

320x240 MJPEG 30fps / YUY2 30fps

Center Definition

1000LW/ PH (Center)

S/ N (Signal Noise Ratio)

30dB

Sensitivity

0.65V/lux-sec@550nm

Min. illumination

0.2 Lux

Shutter

Electronic rolling shutter / Frame exposure

Interface

USB2.0 High Speed

AEC

Support

AWB

Support

AGC

Support

Adjustable Parameters

Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure

Lens

M12  25mm lens;

optional for

3.6/2.1/2.8/2.9/6/8/12/16/25mm lens, No distortion lens, Fisheye lens

Digital Audio

Dual Microphone

Power Supply & Connector

USB BUS POWER    4P-2.0mm socket

Power

DC 5V

Current

210mA

Size

38mm × 38mm

Storage Temperature

-20°C to 75°C

Working Temperature

- 10°C to 65°C

USB Cable

1M(2M/3M/5M Optional)

Operating System

Win XP/Vista/Win7/Win8 / Win9/Win10/Win11 etc.

Linux with UVC (above linux-2.6.26)

MAC-OS X 10.4.8 or later

Android 4.0 or above with UVC

 Optional Models

With no distortion lens:

ELP-USB500W08-V83 (HFOV about 81 degree)

ELP-USB500W08-L100 (HFOV about 81 degree)

ELP-USB500W08-V100 (HFOV about 79 degree)

ELP-USB500W08-LC1100 (HFOV about 62 degree)

ELP-USB500W08-H100 (HFOV about 93 degree)

ELP-USB500W08-H110 (HFOV about 107 degree)

ELP-USB500W08-H120 (HFOV about 118 degree)

With M12 Lens:

ELP-USB500W08-L21 (2.1mm, HFOV 101 degree)

ELP-USB500W08-L361 (3.6mm, HFOV 81 degree)

ELP-USB500W08-L281 (2.8mm, HFOV 102 degree)

ELP-USB500W08-L601 (6mm, HFOV 53 degree)

ELP-USB500W08-L80 (8mm, HFOV 39 degree)

ELP-USB500W08-L12 (12mm, HFOV 23 degree)

ELP-USB500W08-L16 (16mm, HFOV 18 degree)

ELP-USB500W08-L25 (25mm, HFOV 10.5 degree)

With Fisheye Lens:

ELP-USB500W08-L170 (HFOV about 138 degree)

ELP-USB500W08-L180 (HFOV anout 200 degree)
