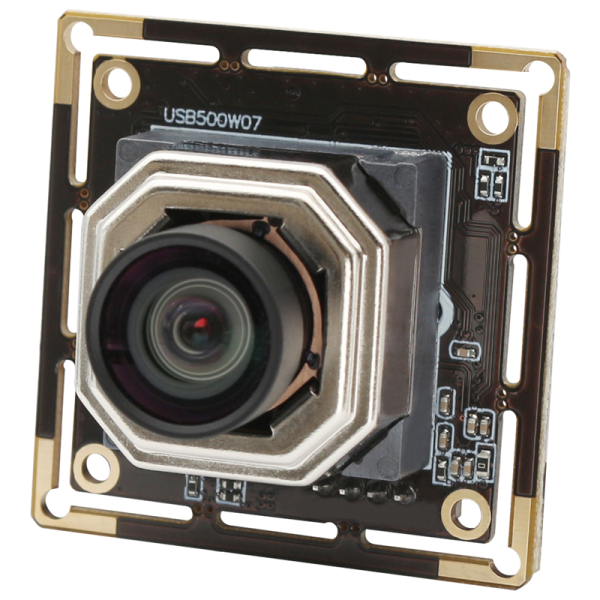

5MP Autofocus Lens USB Camera Module IMX335 Sensor 30fps Free Driver with 80 Degree

Model: ELP-USB500W07-AFV100

Add you Tags

Details

Download

Features:

*5MP HD USB Camera Module with 1/2.8” IMX335 sensor

*High resolution/Rate 2592x1944 MJPEG@30fps

*Lens: Autofocus Lens, no distortion, HFOV about 80 degree

*High speed USB 2.0 interface for high resolution PC camera interface

*Super small outline and thin profile for embedded applications. 38x38mm/32x32mm optional

*Low power consumption – ideal for portable equipment

*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above

*Camera with UVC

Specifications:

Model	ELP-USB500W07-AFV100 other lens options: ELP-USB500W07-AFV100 (HFOV about 80 degree) ELP-USB500W07-AFLC1100 (HFOV about 62 degree) ELP-USB500W07-AFH100 (HFOV about 93 degree) ELP-USB500W07-AFH110 (HFOV about 107 degree) ELP-USB500W07-AFH120 (HFOV about 118 degree)
Sensor	SONY IMX335 (1/2.8” )
Max Resolution	2592(H) *1944 (V)
Pixel Size	2.0µm x2.0µm
Image Area	5800µmx4750µm
Picture Format	MJPEG / YUY2 (YUYV)
Resolution & Frame Rate	2592x1944 MJPEG 30fps/ YUY2 1fps 2048x1536 MJPEG 30fps/ YUY2 3fps 1920x1080 MJPEG 30fps/ YUY2 3fps 1600x1200 MJPEG 30fps/ YUY2 5fps 1280x960 MJPEG 30fps/ YUY2 5fps 1280x720 MJPEG 30fps / YUY2 5fps 1024 x 768 MJPEG 30fps/ YUY2 5fps 800 x 600 MJPEG 30fps / YUY2 20fps 640x480 MJPEG 30fps / YUY2 30fps 320x240 MJPEG 30fps / YUY2 30fps
Center Definition	1000LW/ PH (Center)
S/ N (Signal Noise Ratio)	30dB
Sensitivity	0.65V/lux-sec@550nm
Min. illumination	0.2 Lux
Shutter	Electronic rolling shutter / Frame exposure
Interface	USB2.0 High Speed
AEC	Support
AWB	Support
AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure
Lens	Autofocus Lens, No distortion, Size: 1/2.3", HFOV about 80 Degree, DFOV 85 Degree;
Power Supply & Connector	USB BUS POWER 4P-2.0mm socket
Power	DC 5V
Current	210mA
Size	38mm × 38mm (compatible 32X32mm)
Storage Temperature	-20°C to 75°C
Working Temperature	- 10°C to 65°C
USB Cable	1M(2M/3M/5M Optional)
Operating System	Win XP/Vista/Win7/Win8 / Win9/Win10/Win11 etc. Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
