Model

ELP-USB500W02M-AFC45B

Sensor

OV5640

Lens Size

1/4 inches

Pixel Size

1.4µm x1.4µm

image area

3673.6µmx2738.4µm

Max. Resolution

2592(H) X 1944(V)

Compression format

MJPEG / YUV2（YUYV）

Resolution & frame

2592x1944 @ 15fps MJPEG / 2048x1536 @ 15fps MJPEG
1600x1200 @ 15fps MJPEG / 1280x1024 @ 15fps MJPEG
1920x1080 @ 30fps MJPEG / 1280x720 @ 30fps MJPEG
800x600 @ 30fps MJPEG / 640x480 @ 30fps MJPEG

Camera Board Assembly technique

SMT (ROSH)

Focus

Auto

Resolution

600LW/PH (Center)

S/N Ratio

36dB

Dynamic Range

68dB

Sensitivity

600 mV/Lux-sec

Shutter Type

Electronic rolling shutter / Frame exposure

Connecting Port type

USB2.0 High Speed

Free Drive Protocol

USB Video Class（UVC）

AEC

Support

AEB

Support

AGC

Support

Adjustable parameters

Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure

Lens Parameter

Size: 1/4, HFOV 44 degree

LED board power connector

Support 2P-2.0mm socket

Power supply

USB BUS POWER 4P-2.0mm socket

Operating Voltage

DC5V

Power consumption

150mW (VGA); 200mW (QSXGA)

Working current

active: 140 mA  standby: 20 µA

Working temperature

 -20～70℃

Storage temperature

 0～65℃

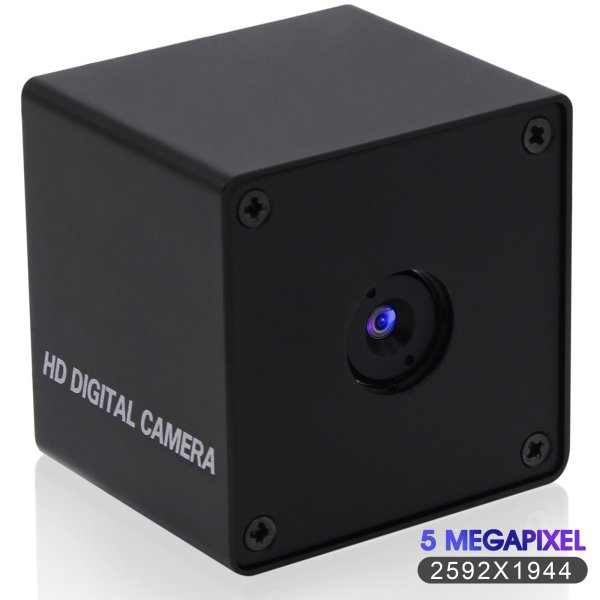

Case/ Size

with mini box case, three colors optional  (Black, silver, blue optional)

Dimension: 42x42x44mm

Cable

Standard 3M / 1M,2M,5M optional

Operating system request

Win XP/Vista/Win7/Win8 /Win9/ Win10
 Linux with UVC（above linux-2.6.26）
MAC-OS X 10.4.8 or later/
Android 4.0 or above with UVC

Certificate

CE&FCC
