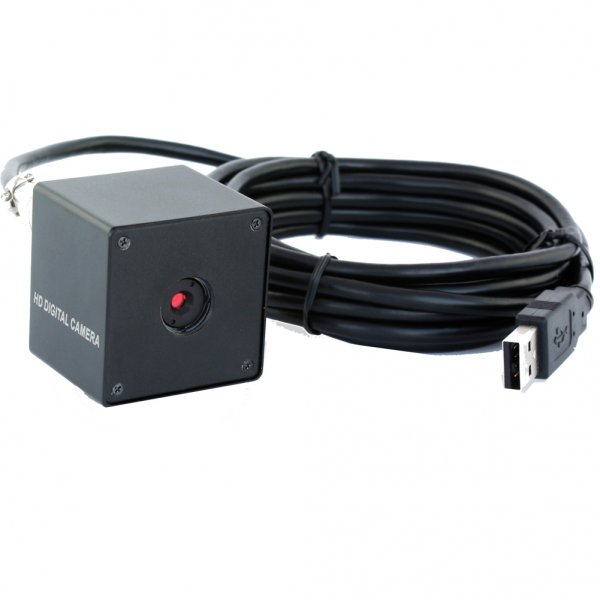

5MP 30degree Autofocus mini USB webcam with mini box case silver, black, blue three colors optional

Model: ELP-USB500W02M-AFC30B

Add you Tags

Product 3/28

Return to the Product List

Details

Download

Features:

* 5MP Autofocus mini USB webcam
* 1/4” OV5640 CMOS sensor for high quality image
* With HD 30degree lens
* MJPEG/YUY2 dual video format optional
* High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface
* UVC compliant - support Windows, Linux, Android system with UVC

Specification:

Model	ELP-USB500W02M-AFC30B
Sensor	OV5640
Lens Size	1/4 inches
Pixel Size	1.4µm x1.4µm
image area	3673.6µmx2738.4µm
Max. Resolution	2592(H) X 1944(V)
Compression format	MJPEG / YUV2（YUYV）
Resolution & frame	2592x1944 @ 15fps MJPEG / 2048x1536 @ 15fps MJPEG 1600x1200 @ 15fps MJPEG / 1280x1024 @ 15fps MJPEG 1920x1080 @ 30fps MJPEG / 1280x720 @ 30fps MJPEG 800x600 @ 30fps MJPEG / 640x480 @ 30fps MJPEG
Camera Board Assembly technique	SMT (ROSH)
Focus	Auto
Resolution	600LW/PH (Center)
S/N Ratio	36dB
Dynamic Range	68dB
Sensitivity	600 mV/Lux-sec
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port type	USB2.0 High Speed
Free Drive Protocol	USB Video Class（UVC）
AEC	Support
AEB	Support
AGC	Support
Adjustable parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure
Lens Parameter	Size: 1/4, 30 degree
LED board power connector	Support 2P-2.0mm socket
Power supply	USB BUS POWER 4P-2.0mm socket
Operating Voltage	DC5V
Power consumption	150mW (VGA); 200mW (QSXGA)
Working current	active: 140 mA standby: 20 µA
Working temperature	-20～70℃
Storage temperature	0～65℃
Case/ Size	with mini box case, three colors optional (Black, silver, Blue optional) Dimension: 42x42x44mm
Cable	Standard 3M / 1M,2M,5M optional
Operating system request	Win XP/Vista/Win7/Win8 /Win9/ Win10 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later/ Android 4.0 or above with UVC
Certificate	CE&FCC
