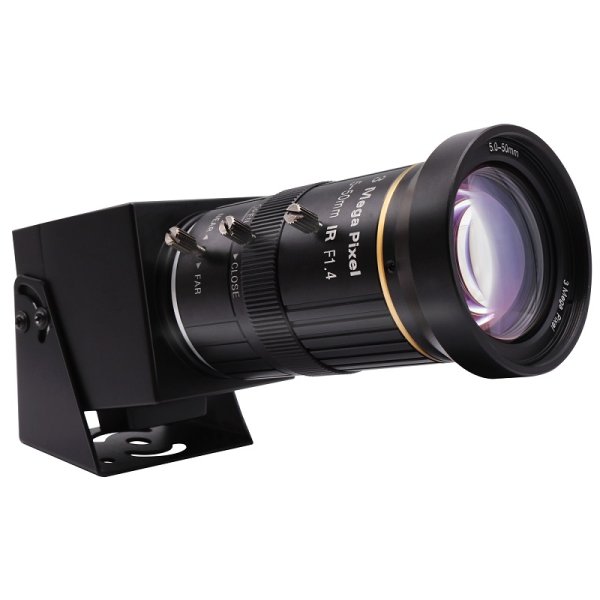

Model

ELP-USB4KCAM01H-CFV(5-50Y)

Sensor

1/2.8” SONY IMX415

Max Resolution

3840(H)*2160(V)

Sensitivity

0.65V/lux-sec@550nm

Pixel Size

1.45µm x 1.45µm

Video Compression

MJPEG / YUY2(YUYV) / H.264 / H.265

Digital Zoom

2X Digital Zoom

Resolution & Frame Rate

3840x2160 MJPEG 30fps/ H.264 30fps/ H.265 30fps

2560x1440 MJPEG 30fps/ H.264 30fps/ H.265 30fps

1920x1080 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 5fps

1280x720 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 10fps

1024x576 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 15fps

960x540 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 15fps

640x480 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 30fps

640x360 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 30fps

Image Processing Time

About 8 seconds after opening the preview software

Central Definition

1000LW/PH(Center)

S/N Ratio

30dB

Min illumination

0.2 Lux

Shutter Type

Electronic Rolling Shutter/ Frame Exposure

Connecting Port Type

USB 2.0 Interface &HDMI v1.4 Interface

AEC/AWB/AGC

Support

Adjustable Parameters

Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Compensation, Exposure

Lens Parameter

CS 5-50mm (CS 2.8-12mm optional)

Power Supply & Interface

USB Type-C Power Supply, Type-C & HDMI Display Simultaneous

Operating Voltage

DC 5V

Working Current

480-500mA

Dimension

Double-deck, 38mm x 38mm

Storage Temperature

-20°C to 80°C

Working Temperature

-10°C to 70°C

USB Cable

2 pieces cables

(1pcs 1.2m cable with Type-C port, 1pcs 1.5m cable with HDMI port)

Operating System Request

Win7/Win8/Win9/Win10/Win11 etc.   Linux with UVC

MAC-OSX10.4.8 or later

Android5.x or above
